2026 Western Star 47X (12 Yard / 1300 Water) RAMVAC HX-12-27 Hydro-Excavation Truck w/ Automatic Transmission and 5250 CFM Blower
Click To Apply
Stock Number GL2647
*IN-STOCK
CALL FOR PRICE
(*Federal Excise Tax and State and Local Sales Tax Not Included)
ESTIMATED LEASE FOR AS LOW AS $13,000 PER MONTH FOR 72 MONTHS WITH $1.00 A BUYOUT – BASED ON APPROVED CREDIT

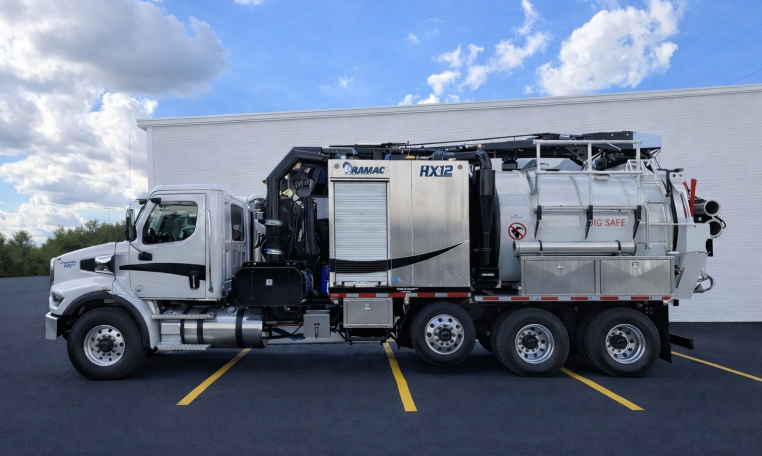

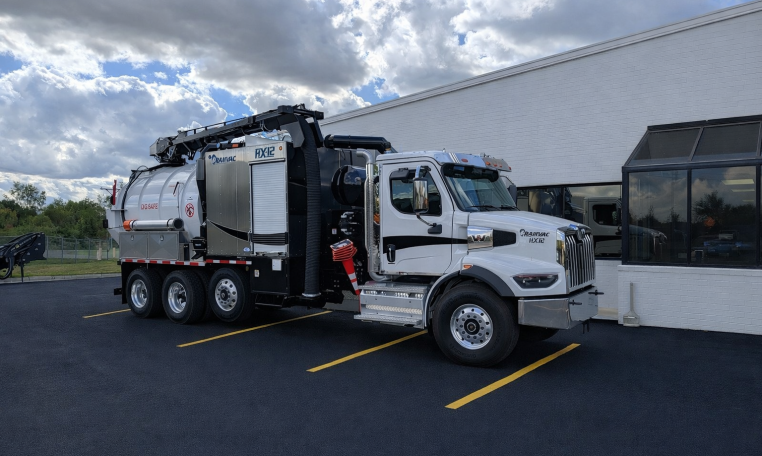

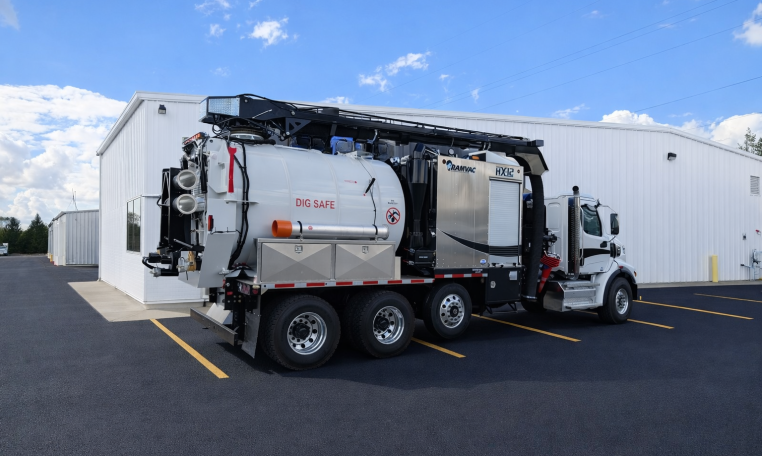

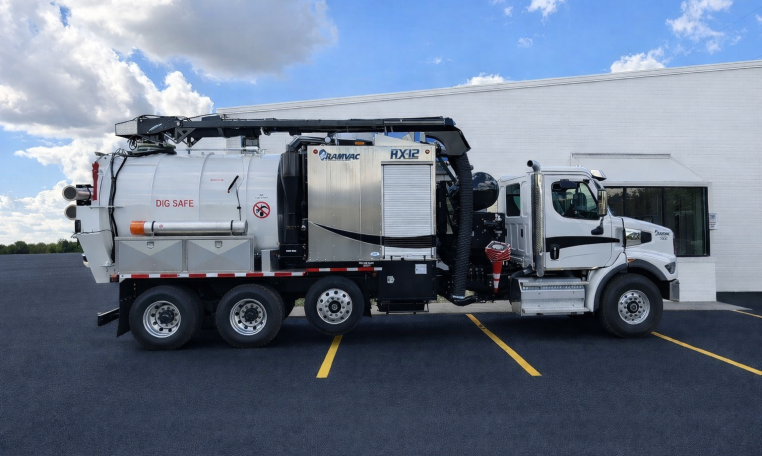

*PICTURES ARE NOT OF THE ACTUAL TRUCK
2026 Western Star 47X Chassis, Detroit DD13 (450 HP) Diesel Engine, Allison RDS 4000 6-Speed Automatic Transmission, Engine Brake, Diff Locks, Power Windows, Locks, and Mirrors, Air Ride Suspension, 306″ Wheelbase, 20,000# Fronts, 46,000# Rear Axles, and 13,200# Pusher Axle, 79,200 GVWR.
RAMVAC Model HX-12-27 Hydro-Excavator
Vacuum System Options
- 5250 CFM Blower
- 27in Hg Vacuum Rating
- 8in Vacuum Hose System
- Dual Cyclone Separator
- Dual Element 10 Micron Final Filter
- Vacuum Relief System
Water System Options
- 18GPM at 3000PSI Water Pump
- 1300 Gallon Duraprolene™ Water Tank w/ 10 year warranty
- 2.5in Hydrant Fill System
- Digital Water Pressure Display
- Recirculation and Blowdown Station
- 800,000 BTU Water Heater
- Winterization System
- 10-gallon antifreeze tank
- Inlet Fill WYE-Strainer
Excavation Options
- Primary Operator Station
- 75ft of 3/8in hose w/ retractable reel
- Dual Operator Station
- 75ft of 3/8in hose w/ retractable reel and complete second set of digging wands and extensions
Debris Box Options
- Hydraulic Dump w/ 50deg Dump Angle
- Hydraulic Open/Close/Lock Door
- Dual Ported Rear Door w/ Knife Valve
- Fold Down Tube Rack
- Debris Tank Access Ladder
- Debris Tank Flush System
- Debris Body Pump Off System Mounted on Rear Door
- Includes 4in hydraulic driven 800GPM pump
- Decant Screen on Rear Door Port (swing-out perforated shield)
- Debris Body Vibrator System
- Audible Debris Liquid Level Alarm
- Level set point is adjustable
Boom Options
- Hydraulic Powered Dig Deep Boom
- 330 Degree Working Radius
- 18ft – 23ft Working Boom Reach
- Extendable Boom System
- Boom Out of Rest Alarm
- Buzzer in the cab
Enclosure Options
- Aluminum Shroud Enclosure Around Water System
- 80,000 BTU Compartment Heater
- Roll-Up Enclosure Doors
- Polar Pack Insulation System
Tool Storage Options
- Passenger Side Saddle Style Toolbox w/ Integrated Control Panel
- Driver Side Saddle Style Toolbox
- Driver Side Toolbox Mounted on Frame Rail
Electrical Options
- NEMA 4 Control Panel
- Water Pump Hour Meter
- Blower Hour Meter
- Wireless Remote Control
- Remote Water Pressure Control
Lighting Options
- LED Arrow Stick
- Factory 6 Strobe Light Package
- (2) front, (2) side, and (2) rear facing strobes
- QTY (2) LED Boom Mounted Work Lights
- LED Work Light Package
- Work light package includes 2 rear-mounted, 1 left side, 1 right side
Safety, Maintenance, and Utility Options
- D.O.T. Approved LED Lighting
- Rear Backup Camera System
- Single rear camera w/ monitor mounted in cab
- Air Purge Winterization System
- (6) 28in DOT Approved Cones and Cone Holder
- Central Lubrication System
Paint Options
- Boom Color – Standard Black
- Tank Color – Standard White
- Shroud Color – Aluminum
Manuals and Training
- Operations, Maintenance, and Safety Manuals
Nozzles and Accessories
- QTY (4) 8in x 6ft Extension Tube
- QTY (1) 8in x 6ft Aluminum Digging Tube
- QTY (5) Quick Clamps
- Variable Degree Wash-down Gun
- 2.5in 25′ Fill Hose
- Hydrant Wrench
Located in Illinois. MANUFACTURER WARRANTY. Financing and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.
 |
|
 |
|
 |
|
| Stock #: | GL2647 |
| Location: | Illinois |
| Truck Type: | Hydrovac Trucks |
| Condition: | New |
| Year: | 2026 |
| Make: | Western Star |
| Model: | 47X |
| Engine Make: | Detroit |
| Engine Model: | DD13 |
| Horsepower: | 450 |
| Fuel Type: | Diesel |
| Transmission: | Automatic |
| Engine Brake: | Yes |
| Suspension Type: | Spring |
| Wheels: | Aluminum |
| Wheelbase inches: | 306 |
| Rear Axles: | Tri |
| GVWR: | 79,300 |
| Front Axle Weight: | 20,000 |
| Rear Axle Weight: | 46,000 |
| Lift Axle Weight: | 13,200 |
| Lift Axle Type: | Steerable |
| Differential Lock: | Yes |
| A/C: | Yes |
| Power Windows: | Yes |
| Power Locks: | Yes |
| DOT Inspection: | Yes |
| Body Model: | HX-12 Hydrovac |
| Vacuum Type: | Vacuum Blower |
| Pump Make: | Hibon |
| Pump Model: | 8702 |
| CFM Rating: | 5250 |
| Pump Hg. Rating: | 27" |
| Water Pump: | Yes |
| GPM Rating: | 18 |
| PSI Rating: | 3000 |
| Vacuum Boom: | Yes |
| Remote Control: | Wireless Remote |
| Hot Water Boiler: | Yes |
| Boiler BTU Rating: | 800,000 |
| Tank Type: | Non-Code |
| Tank Material: | Carbon Steel |
| Tank Capacity: | 12-Cubic Yards |
| Water Capacity: | 1300-Gallons |
|
|
|
