2026 Peterbilt 548 (3000 USG / 70 BBL) Diamond ECO Solutions D.O.T. 412 Liquid Vacuum Truck w/ Automatic Trans

$295,000.00

$402,852.00

FET INCLUDED IN PRICE
Click To Apply

IN PRODUCTION

Vehicle Overview
Features & Options

Stock Number: GL2584

*IN-PRODUCTION FOR COMPLETION IN JULY

PRICE $295,000 (FEDERAL EXCISE TAX IS INCLUDED IN PRICE)

LEASE FOR AS LOW AS $4,925 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

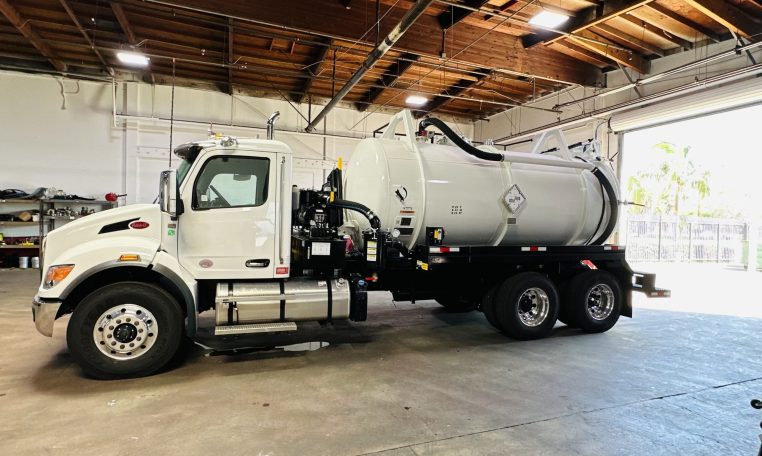

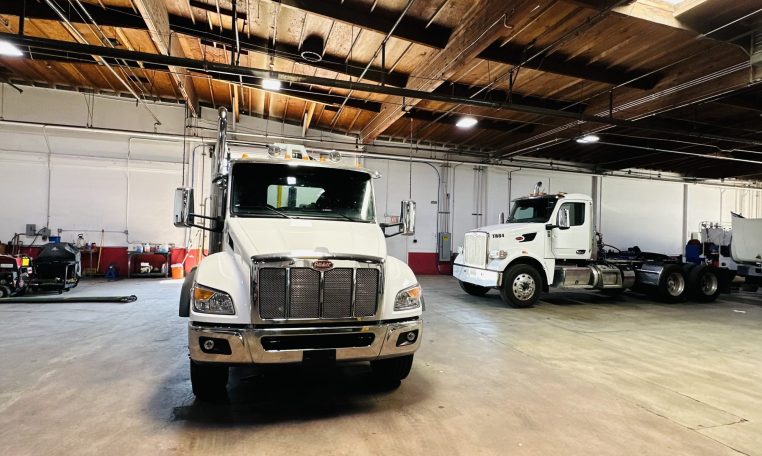

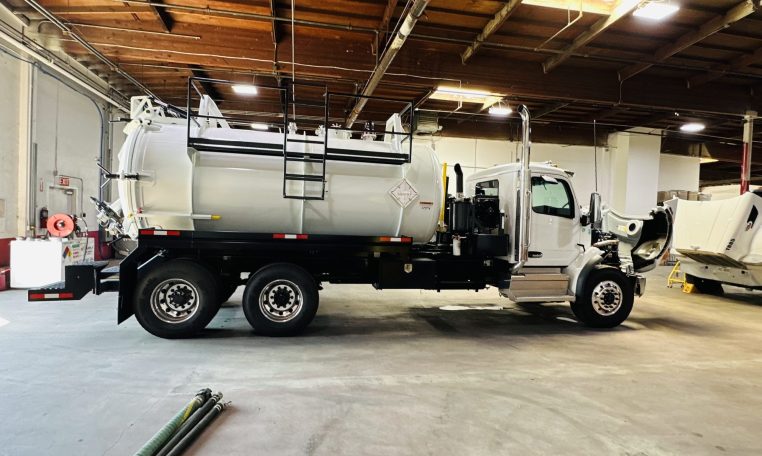

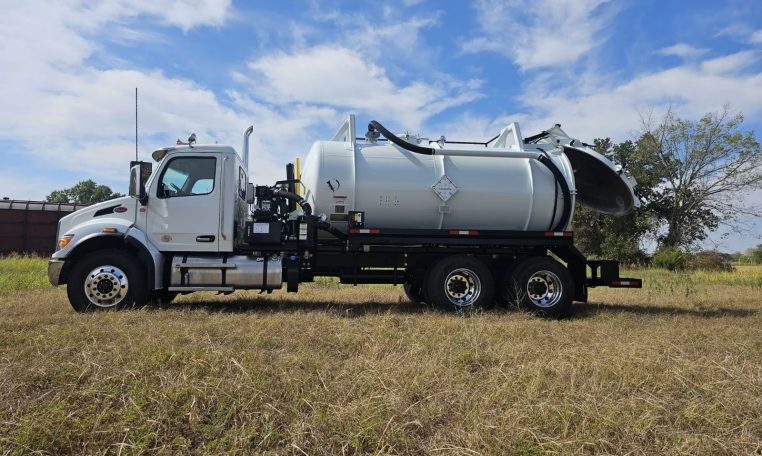

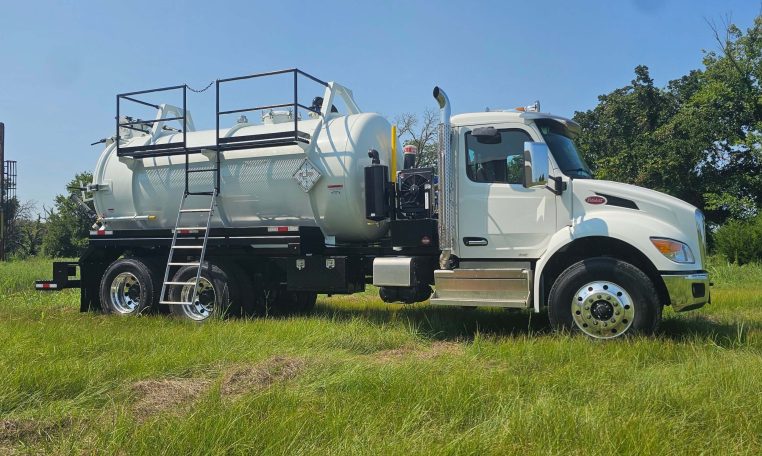

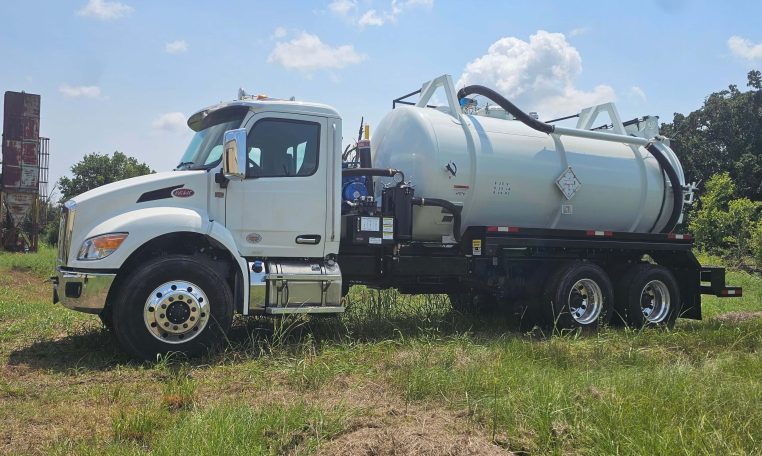

*PICTURES ARE NOT OF THE ACTUAL TRUCK

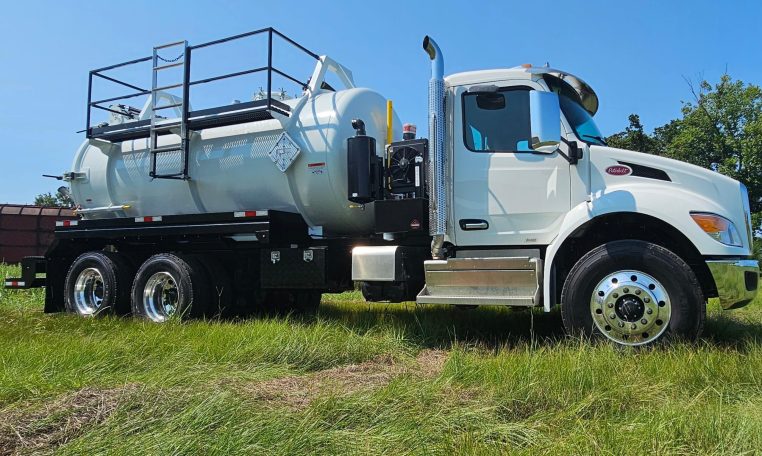

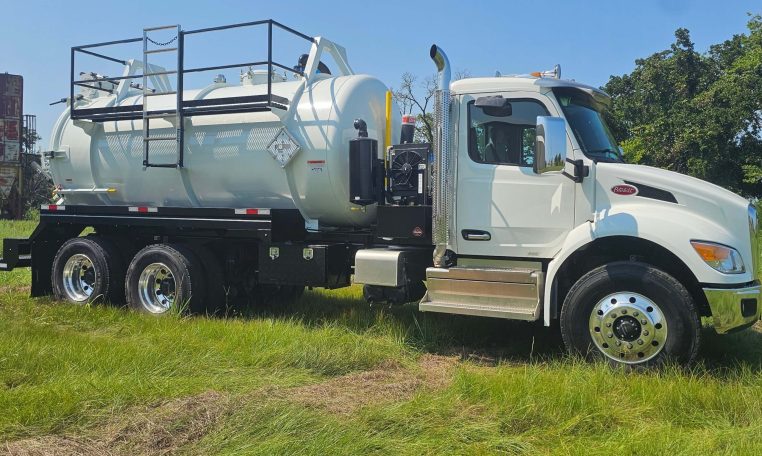

2026 PETERBILT 6X4 Chassis, Paccar PX-9 (350 HP) Diesel Engine, Allison 3000 RDS 6-Speed Automatic Transmission, Cruise Control, Power Windows, Locks and Mirrors, Heated Mirrors, Anti-Lock Braking System (ABS), VGT Exhaust Brake, Diff Locks, Wheelbase 230″, 4.88 Rear Axle Ratio, 50-Gallon Fuel Tank, ALCOA Polished Aluminum Wheels, Taper Leaf Springs 20,000# Front Suspension, Peterbilt Air Trac 40,000# Rear Suspensions, 60,000 GVWR.

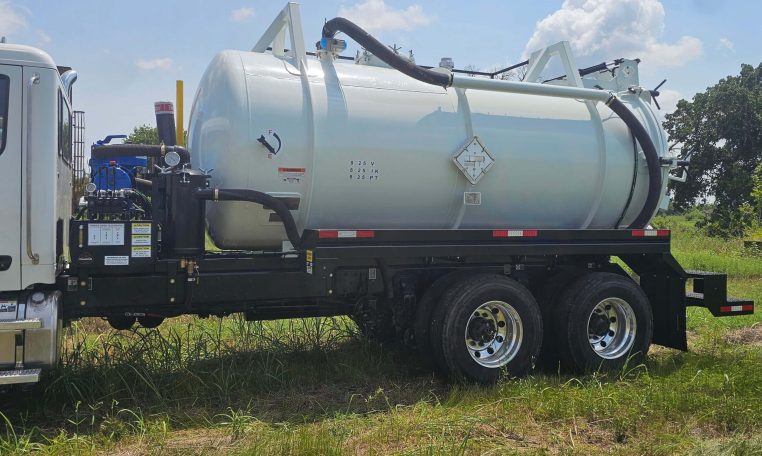

Diamond ECO Solutions D.O.T. 412 Vacuum Tank

CODE: D.O.T. 412 Vessel will be constructed and certified in conformance with the ASME Boiler and Pressure Vessel Code (Section VIII, Division 1).
QUANTITY: (2) Two, Full-tilt/Full-open.
TANK CAPACITY: 3000 USG (70 BBL).
HEAD MATERIAL: 5/16 Carbon Steel SA-516-70.
SHELL MATERIAL: 5/16″ Carbon Steel SA-516-70.
TANK DIAMETER: 76” OD.
DESIGN PRESSURE: (internal) 25 psi.
DESIGN PRESSURE: (external) 15 psi (full vacuum).
HYDROSTATIC TEST PRESSURE: 40 psi.
MAXIMUM ALLOWABLE WORKING PRESSURE: (MAWP) 25 psi (limited by design).
OPERATING TEMPERATURE: -20°F TO 200°F.
REINFORCEMENT RINGS: ½” Flat bar, external reinforcement rings.
OVERTURN PROTECTION: Overturn protection with reinforcement pads, CFR 49 178.337-10 (b).
PRESSURE RELIEF VENT: 3” Stainless Steel, 25 psi (412), per CFR 49 178.345-10.
PRIMARY SHUT OFF: 4” stainless steel.
ISOLATION VALVE: 3” air-operated butterfly valve between primary shut-off and secondary shut-off, per CFR 49 178.345-11.
VACUUM GAUGE: Two (2) 30/30 Vacuum/Pressure gauges, one installed near controls, one installed on the rear head.
LIQUID LEVEL INDICATOR: External arrow rotary float gauge with 8” stainless steel float ball, Teflon packing, and Teflon seat, equipped with grease fitting.
TOP MANWAY: One (1) 20” diameter carbon steel manway with a neoprene gasket.
SUCTION VALVE: One (1) 4” air-operated self-closing Betts valve coupling & drip cap, one manual Betts Valve per CFR 49 178.345-11.
INTERNAL RISER PIPE: 4” with deflector wear plate.
DISCHARGE VALVE: One (1) 6” air-operated self-closing Betts valve coupling & drip cap, one manual Betts Valve per CFR 49 178.345-11.

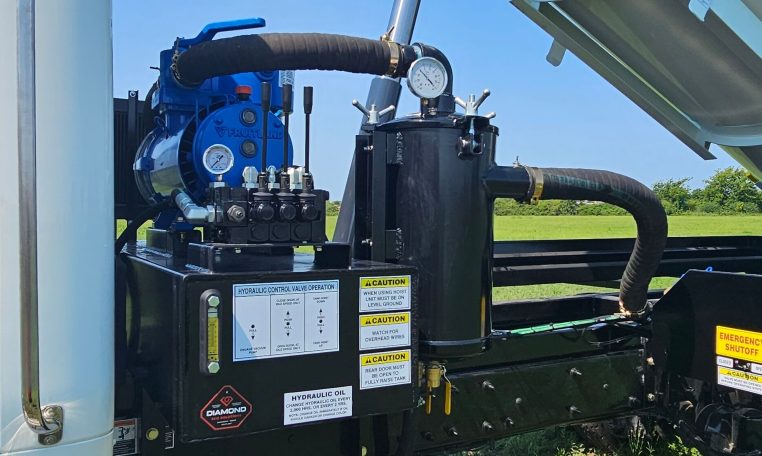

VACUUM PUMP: Fruitland RCF500, vacuum pressure pump, air cooled, 338 cfm free air rating, 28” HG maximum vacuum, hydraulically driven.
HYDRAULIC COMPONENTS: Hydraulic hoses, 80-gallon hydraulic reservoir, hydraulic cooler, suction strainer, fill cap, oil filters, sight glass, 3-spool valve bank for pump, door, & hoist.

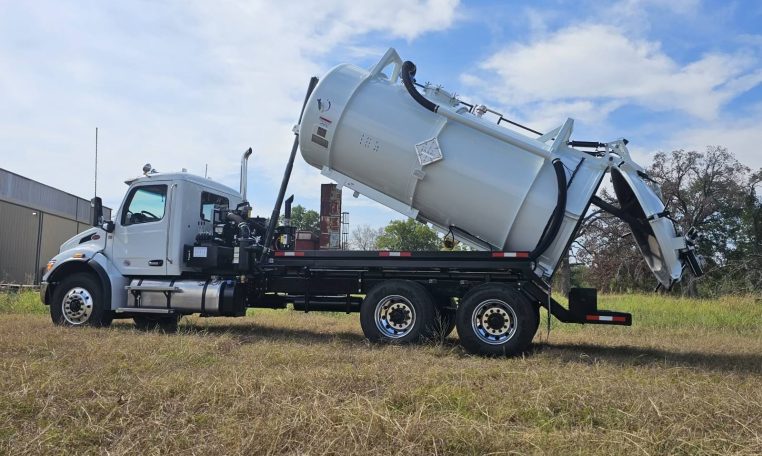

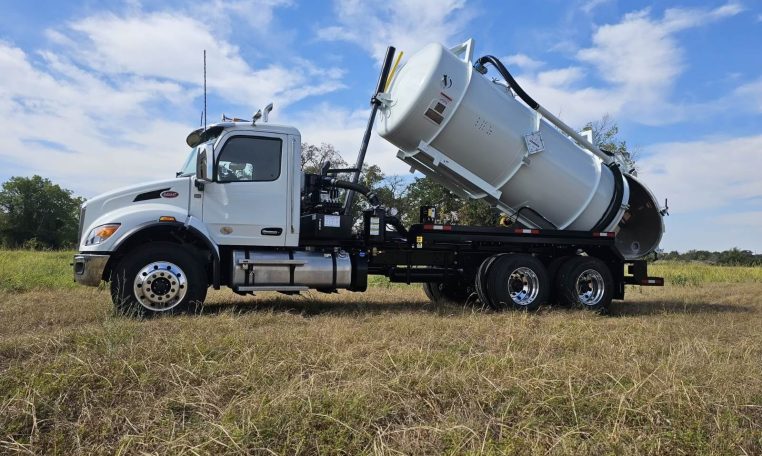

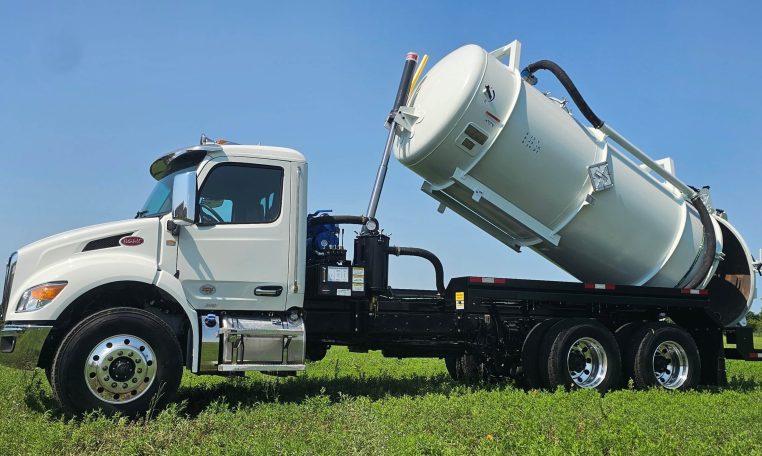

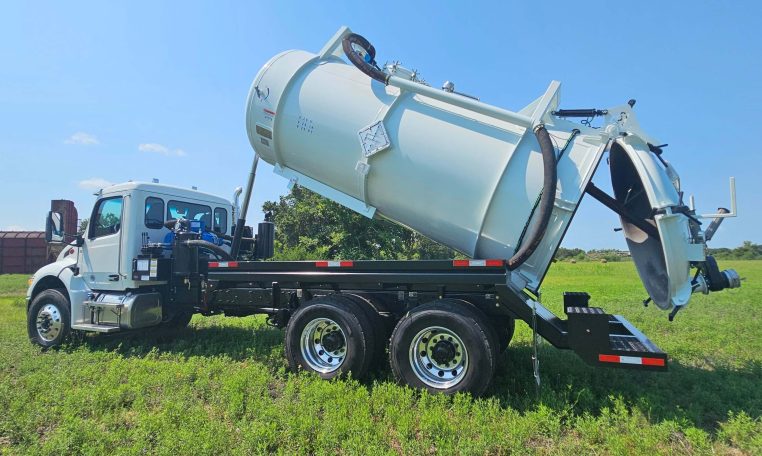

HOIST: 3-stage 20 tons capacity, heavy-duty hinges, & grease fittings.
HOIST SAFETY PROP: Manual engaging tank safety prop
VACUUM LINES: 3” wire reinforced, continuously grounded, neoprene vacuum/pressure hose.

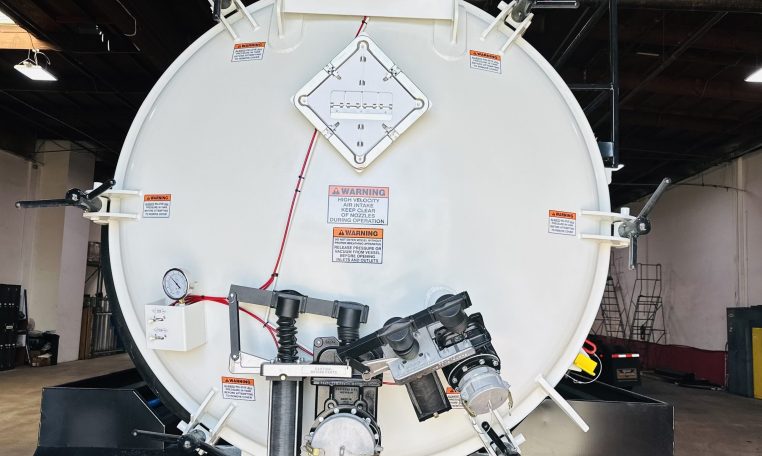

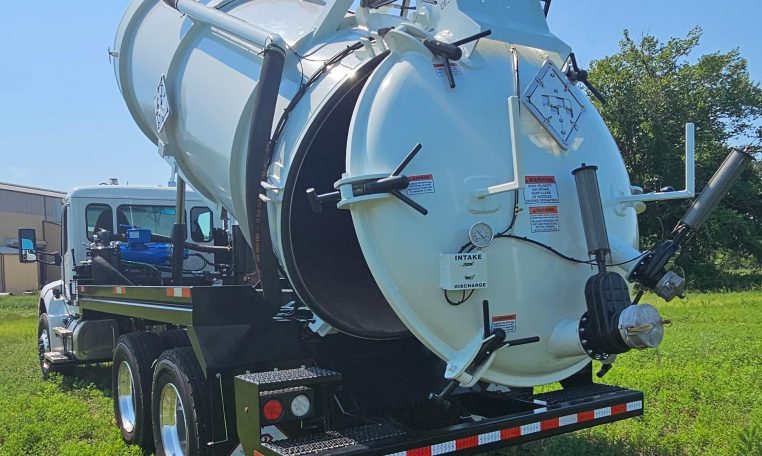

REAR DOOR: Full opening rear door, hydraulically operated, heavy-duty wing bolt closures.
DOOR SAFETY PROP: Manual-engaging back-door safety prop.
PUMP MUFFLER: Oil catch muffler with drain valve, camlock coupling for exhaust hose adapter.

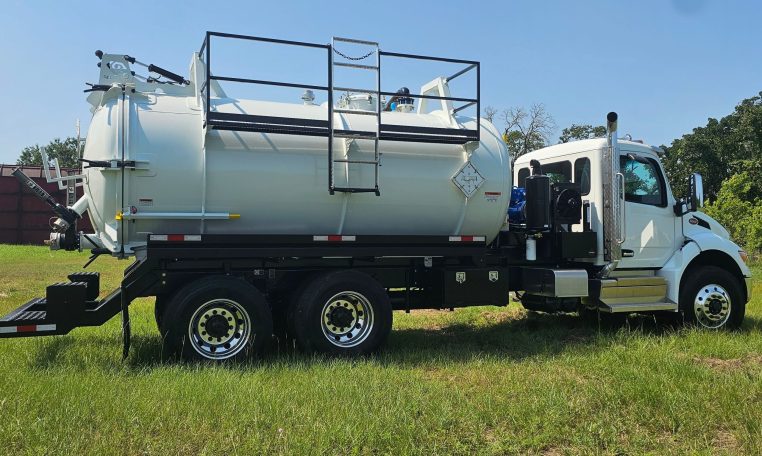

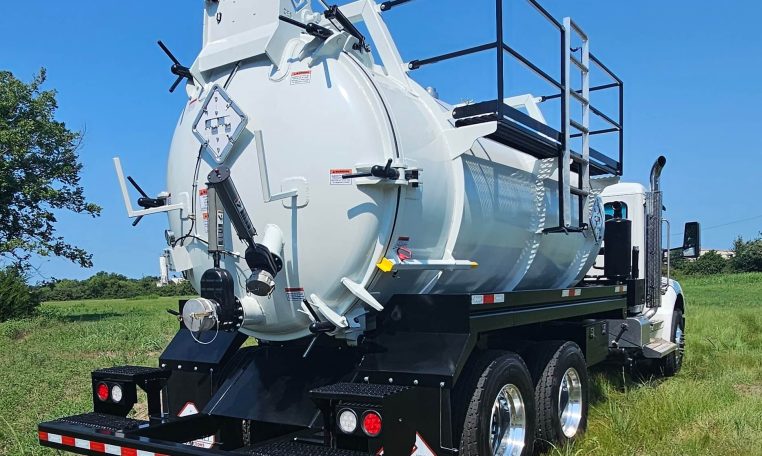

WALKWAY: Ten-foot anti-skid grip-strut with handrail and aluminum fold-down ladder.
HOSE TRAYS/FENDERS: Full-length combination hose trays and fenders, one on each side of the tank, to be painted black carbon steel.
BUMPER: D.O.T. Heavy-duty bumper for under-ride protection, with ground cable.
PRESSURE RELIEF VALVE: 2” brass pressure valve set at 14 psi.
VACUUM RELIEF VALVE: 11/2” brass vacuum valve set at 23 in.
PLACARDS: Four (4) multi-purpose.
BACK-UP ALARM: Audible type.
TOOLBOX: 18″ x 18″ x 36” Under-bed toolbox, painted black.
WORKLIGHTS: (2) Two LED lights located on the rear of the tank.
PAINT: The entire exterior of the tank and body of the vacuum system shall be sandblasted and powder-coated white. The hose trays, bumper, subframe, and hydraulic tank are coated black.

Located in Texas. MANUFACTURER’S WARRANTY. Financing and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.




Stock #:	GL2584
Location:	Texas
Truck Type:	DOT Code Trucks
Condition:	New
Year:	2026
Make:	Peterbilt
Model:	548
Engine Make:	Paccar
Engine Model:	PX-9
Horsepower:	350
Fuel Type:	Diesel
Transmission:	Automatic
Engine Brake:	Exhaust Brake
Suspension Type:	Air Trac
Wheels:	Aluminum
Wheelbase inches:	230
Rear Axles:	Tandem
GVWR:	60,000
Front Axle Weight:	20,000
Rear Axle Weight:	40,000
Fuel Capacity:	50-Gallons
A/C:	Yes
Power Windows:	Yes
Power Locks:	Yes
DOT Inspection:	Yes
Body Make:	Diamond ECO Solutions
Body Model:	DOT 412
Vacuum Type:	Transfer Pump
Pump Make:	Fruitland
Pump Model:	RCF500
CFM Rating:	338
Pump Hg. Rating:	28"
Tank Type:	DOT 412
Tank Material:	Carbon Steel
Compartments:	One
Tank Capacity:	70 BBL / 3000-Gallons
