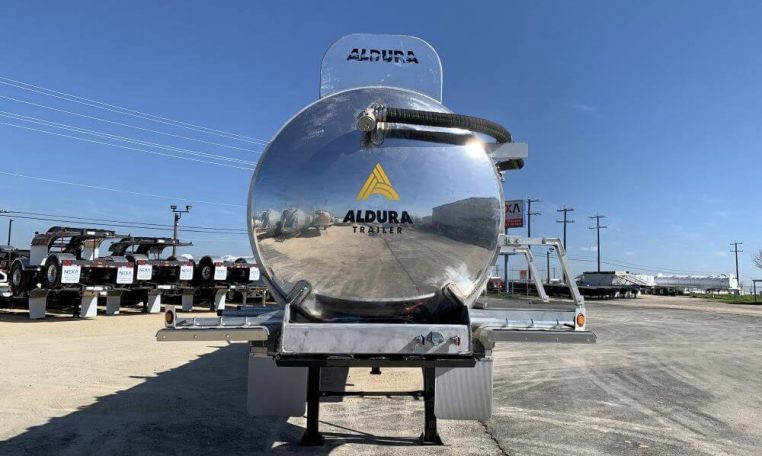

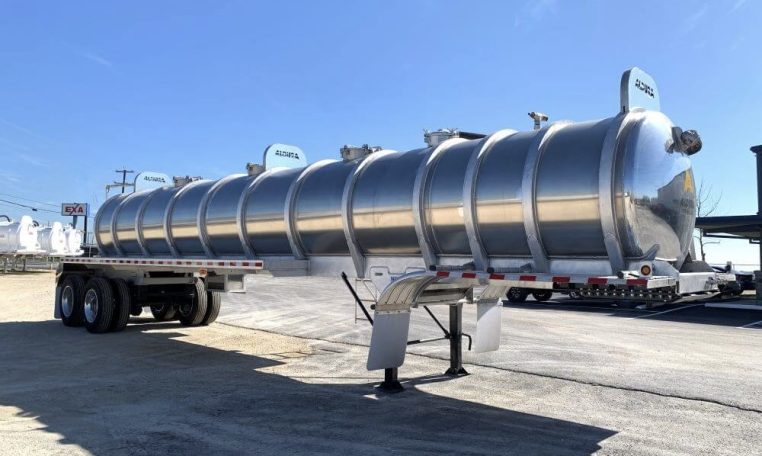

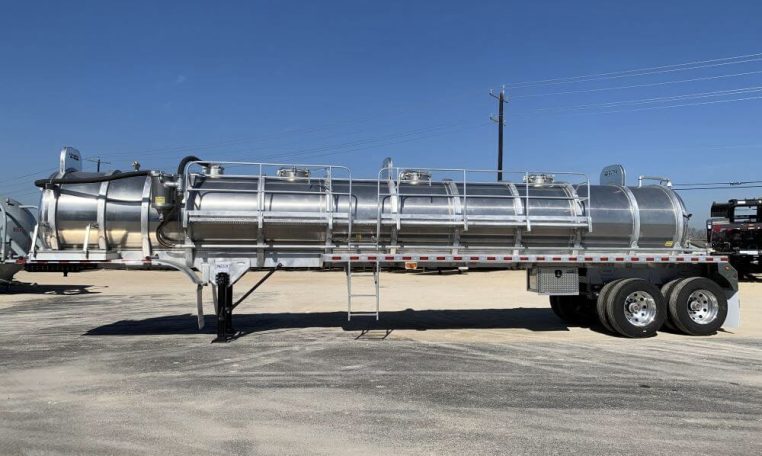

2026 EXA (150 BBL / 6,300 Gallons) Aluminum Non-Code Vacuum Trailer

$74,000.00

$102,164.40

FET $8,412 NOT INCLUDED
Click To Apply

Vehicle Overview
Features & Options

Stock Number: GL2505

*CALL FOR AVAILABILITY

PRICE: $74,000 + FET $8,412 = TOTAL $82,412 (STATE AND LOCAL SALES TAX NOT INCLUDED)

LEASE FOR AS LOW AS $1,485 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($8,412) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

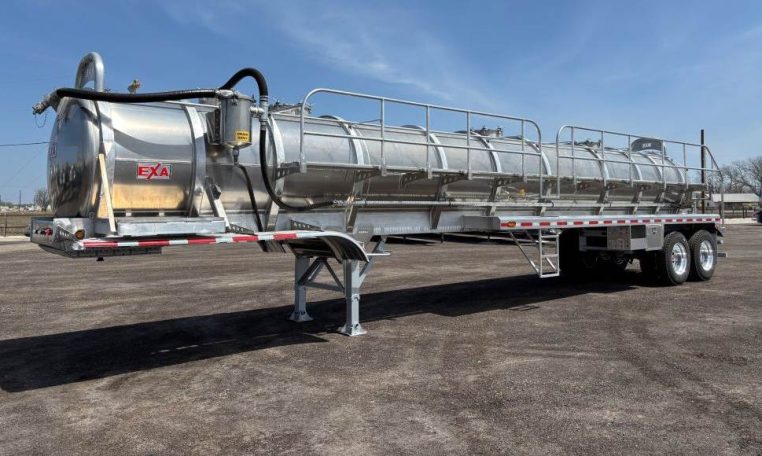

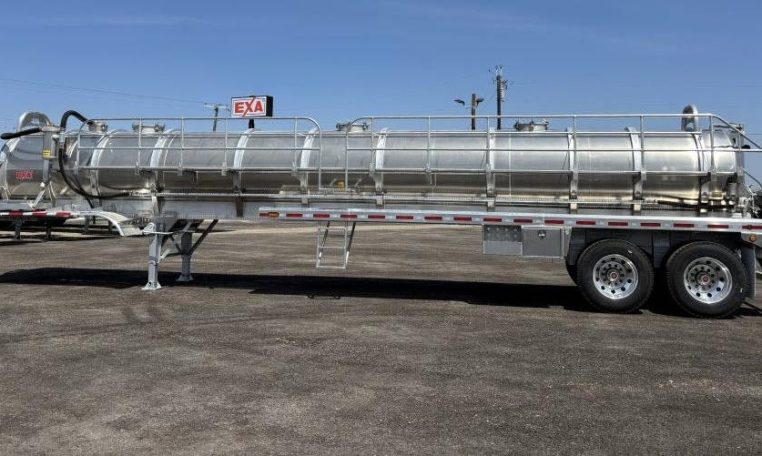

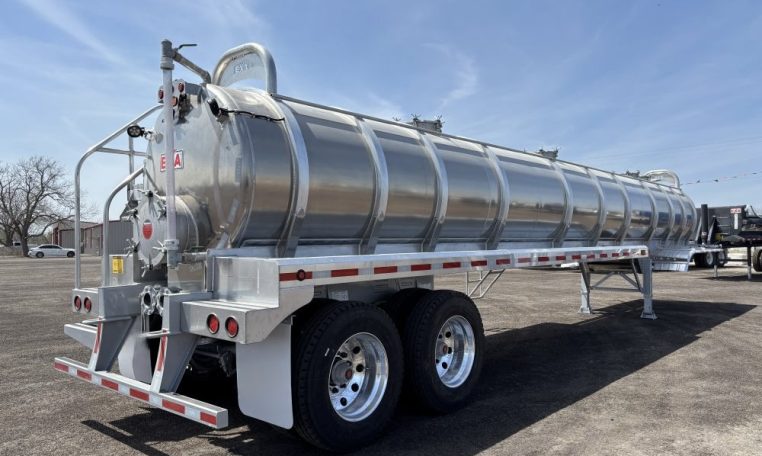

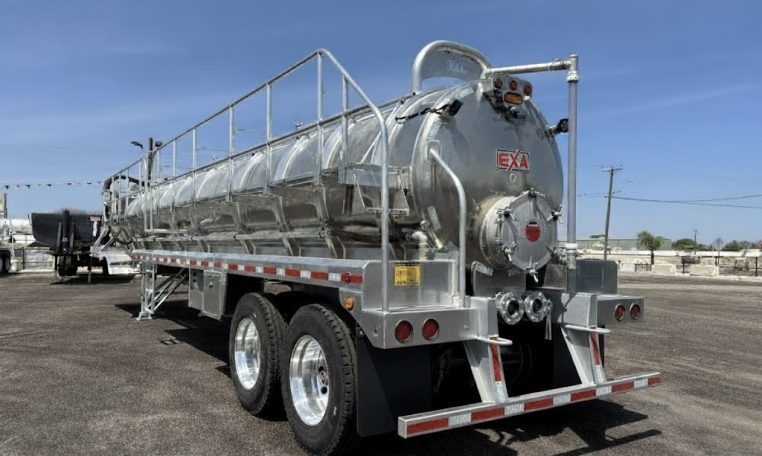

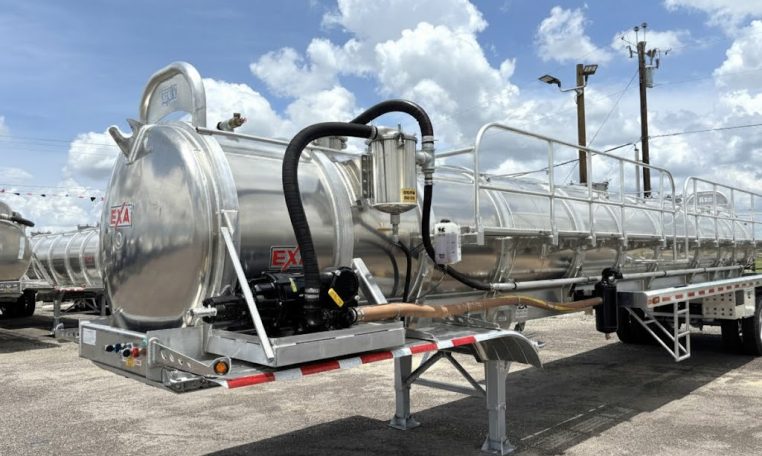

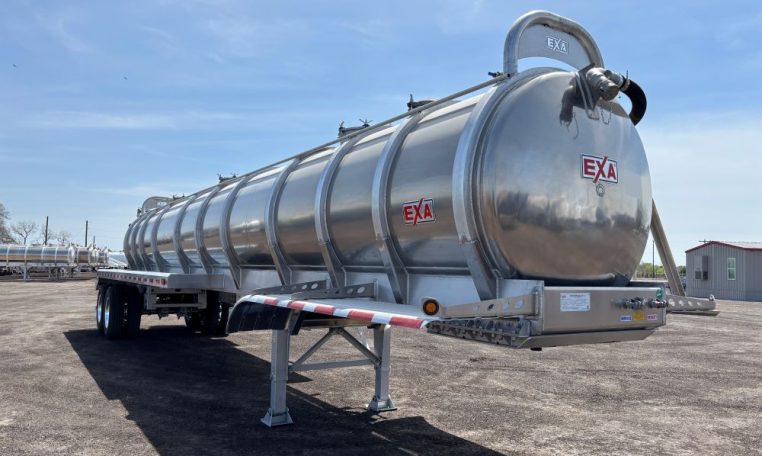

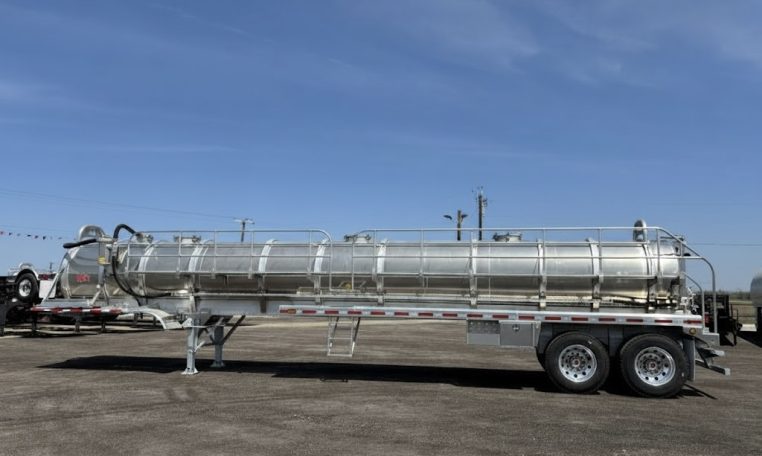

2026 EXA 150 BBL Aluminum Non-Code Vacuum Trailer

Capacity: 150 Barrels / 6,300 Gallons + 1% Expansion
Commodity: Transportation of Oilfield Fluids such as Water, Mud, and Oilfield Waste.
Design Pressure: Tested at 23 PSI
Overall Length: 42′
Height: 11.8′
Weight: 10,540 lbs
Width: 102″
Material: Aluminum 5454H-32
Suspension: Air Hendrickson HT300
Baffles: Three (3) of 1/4″ Thickness
Bulkheads: 3/8″ Aluminum 5454H Non-Code ASME Shape
Compartments: Single
Overturn Protection: Two (2), at the Front and Back of the Tank
Shell: 1/4″ Aluminum Shell 5454H-32
Rings: Twelve (14) Rolled of 3″ C-channel profile
Welding: Inside and Out, Minimal Tie Ins with MIG Welding

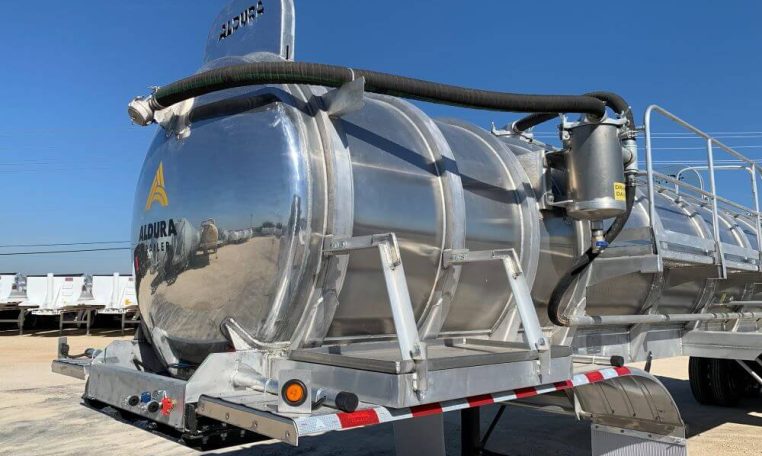

Connections: 3″ Vacuum Connector with Aluminum Cam and Grove Fitting and Dust Cap

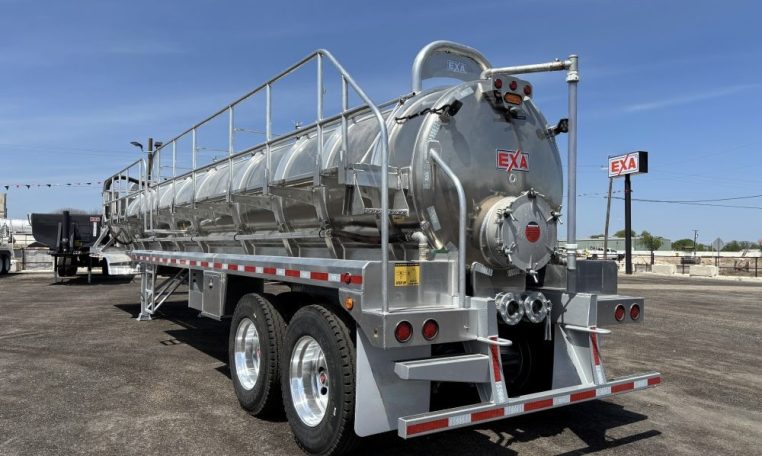

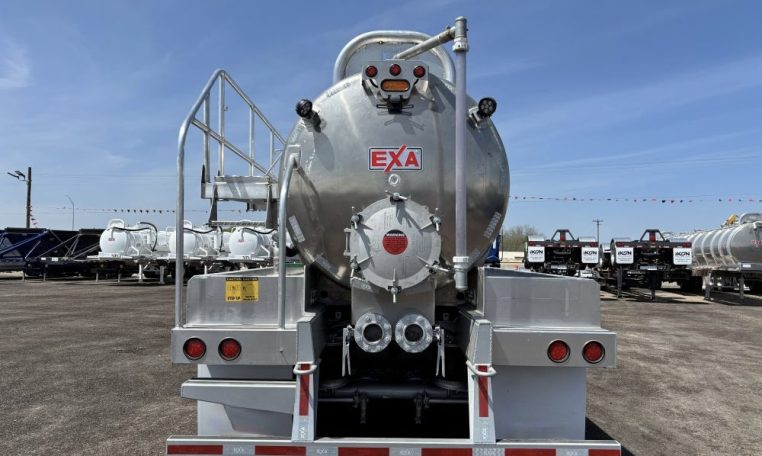

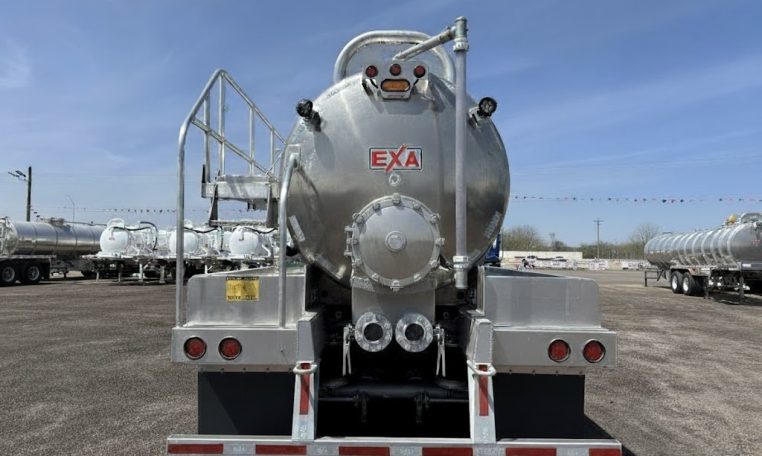

Outlet: Two (2) 4″ Butterfly Valves at the Rear
Shut Off: Ball Type Primary in Front Manway and Ball Type Secondary 12 Gallon on Driver’s Side Front
Venting/Reliefs: Blow Down Line at the Rear
Axles: Two (2) 30,000 lbs each, 120″ Wide, 77.5″ Track, TP Type with Automatic Slack Adjuster
Brakes: Air Brakes with Two Boosters FMVSS-121, ABS 4S/2M Bendix Anti-Lock Brake System
Bumper: 4″ x 3″ Tube Per DOT
Frame: 1/4″ Steel Formed
Landing Gear: 2 Speed Heavy Duty
Tires: Eight (8) 11 X 24.5 R, All Terrain Tires
Wheels: All-Aluminum 10-Hole Pilot Wheels
Access Ladder: One (1) Safety Side Ladder

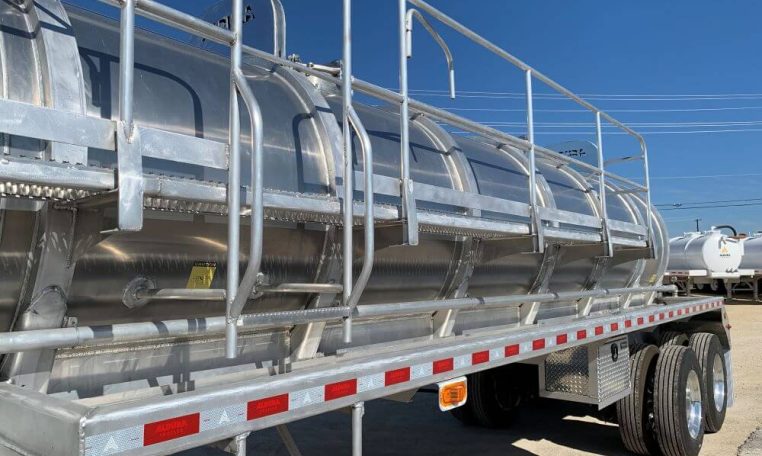

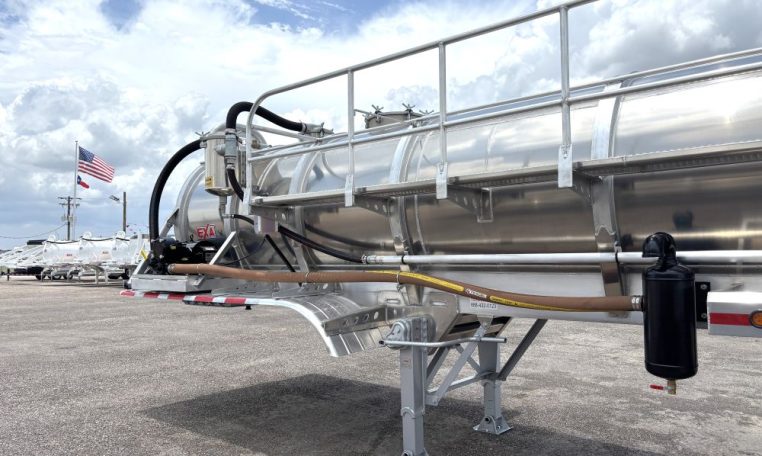

Walkway: Driver Side, with Handrails, Toe Kicks, Thru Tread Anti-Slip Walkway with Ladders in the Middle and the Back

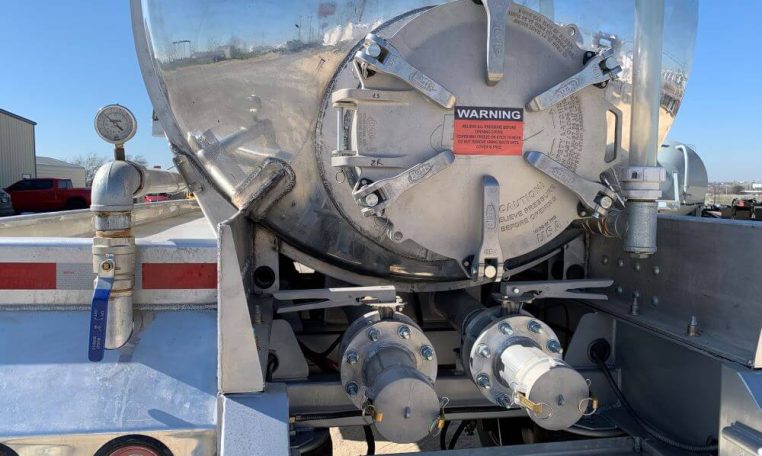

Manways: Three Aluminum (3) on Top of the Tank, One (1) on the Rear Bulkhead, and One (1) on Top Front Used as a Shut Off. All 20 in Aluminum Domed Style with Plates, Swing Bolts, and Wing Nuts
External Coating: Jones-Blair Two (2) Coats of Polyurethane on an Epoxy Primer (4-6 mils DFT) on Steel Components
Interior Liner: Epoxy Liner
Paint Prep: All Steel Surfaces Sandblasted Inside and Out
Conspicuity Tap: 3M Per DOT

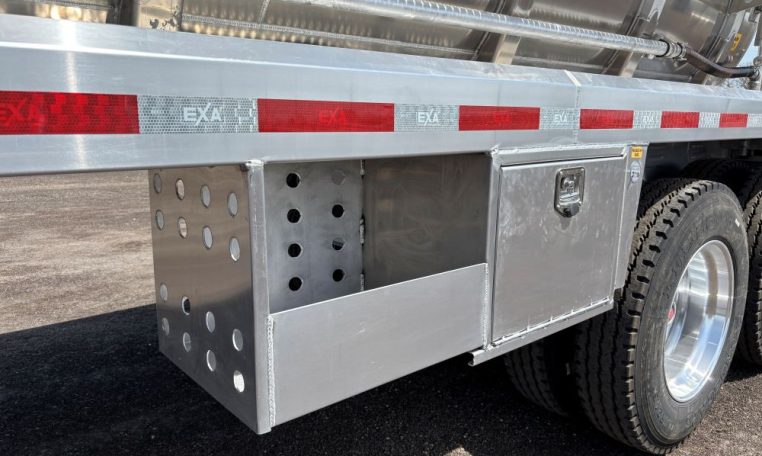

Fenders: 25″ Formed Hose Tray (10 Gallon) with 1/4″ Supports on Both Sides, Aluminum Fenders in the Front
Lights: Sealed Harness and LED Lights Per DOT. Two Rear Work Lights with Integrated Switches
Mud Flaps: Two (2) Anti-Sail Mud Flaps

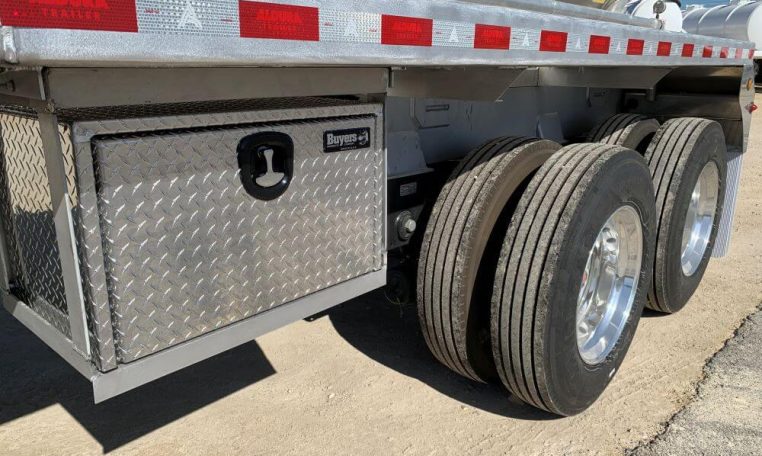

Tool Box: One (1) 30″ x 16″ x 24″ Tool Box on the Driver’s Side
Vacuum Manometer: One (1) located in the Rear
Sight Glass: Sight Glass Liquid Level Indicator on the Rear Right Side of the Bulkhead
Under Tank Options: Additional Tool Boxes, Tire Carriers, Chain Carrier, Stainless Steel Frames
Paint Color: Available in a Variety of Different Colors
Suspension Option: Hutch Spring
Level Indicator Option: Ball Float Type with Pointer Level Indicators, Eye Style Sight Glasses

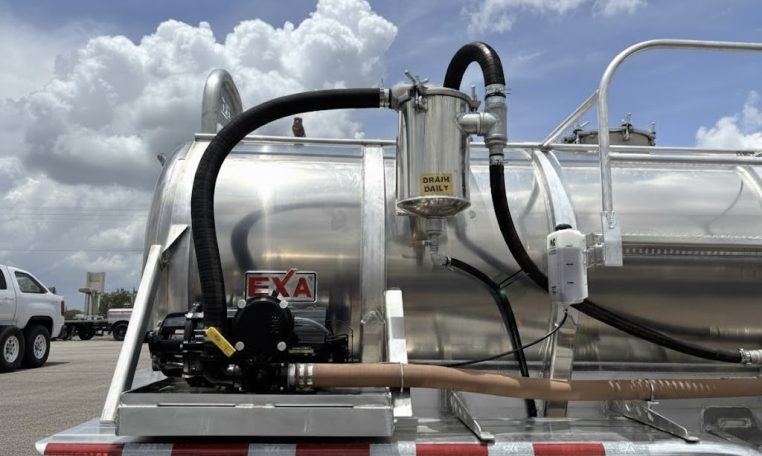

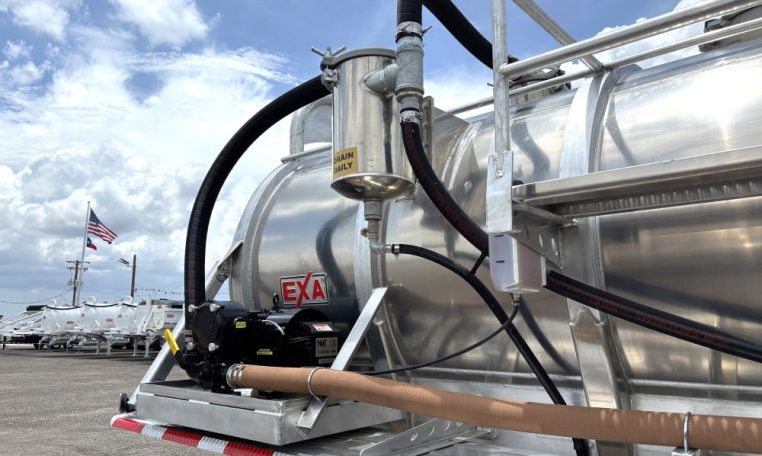

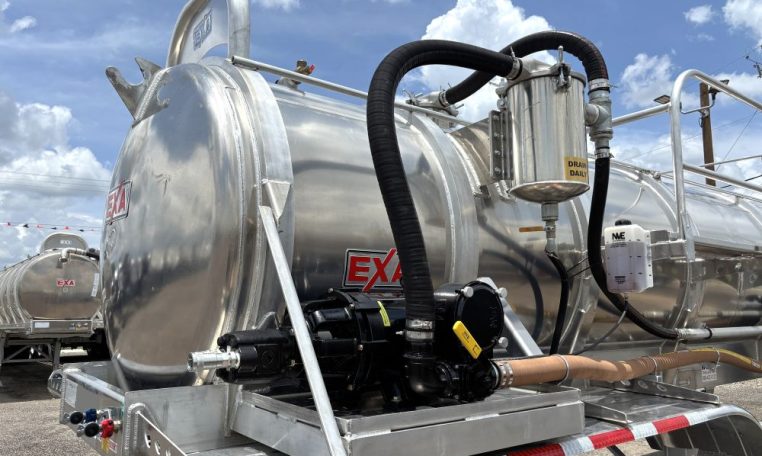

Available Option: Fruitland or NVE Rotary Vane Vacuum/Pressure Pump (Add $10,000)

Located in Texas. MANUFACTURER’S WARRANTY. Financing and Leasing Available. Call (888) 432-9070 for Information. Delivery Available.




Stock #:	GL2505
Location:	Texas
Truck Type:	Vacuum Trailers
Condition:	New
Year:	2026
Make:	EXA
Model:	150 BBL Vacuum Trailer
Suspension Type:	Air Ride
Wheels:	Aluminum
Rear Axles:	Tandem
Front Axle Weight:	30,000
Rear Axle Weight:	30,000
Vacuum Type:	Available Option
Tank Type:	Non-Code
Tank Material:	Aluminum
Lined Tank:	Epoxy Coated
Compartments:	One
Tank Capacity:	6,300-Gallons

DISCLAIMER: Pricing is an estimation and does not include delivery/freight costs, state and local sales tax, federal excise tax (if applicable), and titling and registration fees. All pricing shown is in USD, which is subject to change.

Photos, specifications, prices, and all other information are subject to change or correction without notice. While every effort is made to ensure the listed data is correct, there may be instances where some of the pictures, options, or vehicle features may be incorrectly listed as we receive the data from multiple sources. PLEASE MAKE SURE to confirm the vehicle's details to ensure its accuracy. The dealer cannot be held liable for errors, omissions, or data that is listed incorrectly.

All equipment photographs on this website depict new and used equipment, and Great Lakes Equipment Sales, Inc. ("SELLER") does not assert their accuracy or completeness. SELLER is not a manufacturer or servicer of equipment. Physical inspection of equipment is encouraged, and any purchasing decisions should be based upon such actual inspection thereof as the interested person deems appropriate, SELLER makes no representations or warranties whatsoever including, without limitations that may be incorrect such as the vehicle's title, year, model, condition, hours, mileage, history, merchantability or fitness for a particular purpose.

All sales shall be "Sold As-Is No Warranty" unless stated otherwise in writing. Taking possession of a vehicle constitutes acceptance as it is and an acknowledgment that the buyer has either fully inspected or accepted all parts of the vehicle, sight unseen.
