2024 Mud Dog 1200 PD (12 Yard / 1500 Water) Hydro Excavation Truck

$575,500.00

FET $23,430 NOT INCLUDED
Click To Apply

In Production

Vehicle Overview
Features & Options

Stock Number GL2177

*IN PRODUCTION FOR JUNE/JULY COMPLETION

PRICE: 575,500

LEASE FOR AS LOW AS $9,975 PER MONTH FOR 72-MONTHS WITH $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($22,104) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

*PICTURES ARE NOT OF THE ACTUAL TRUCK

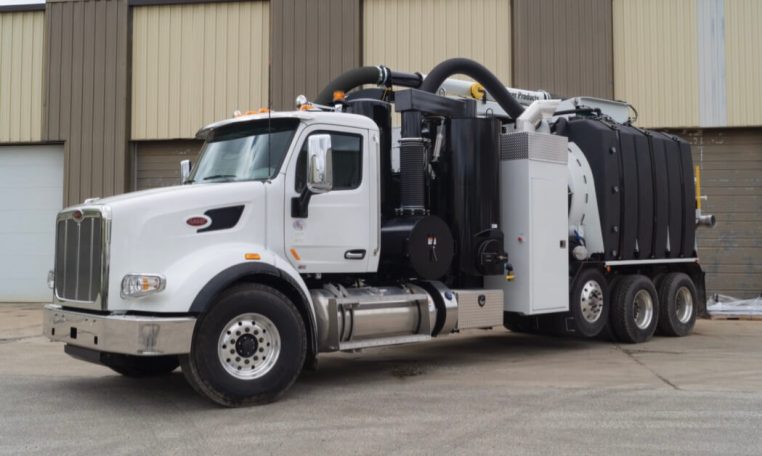

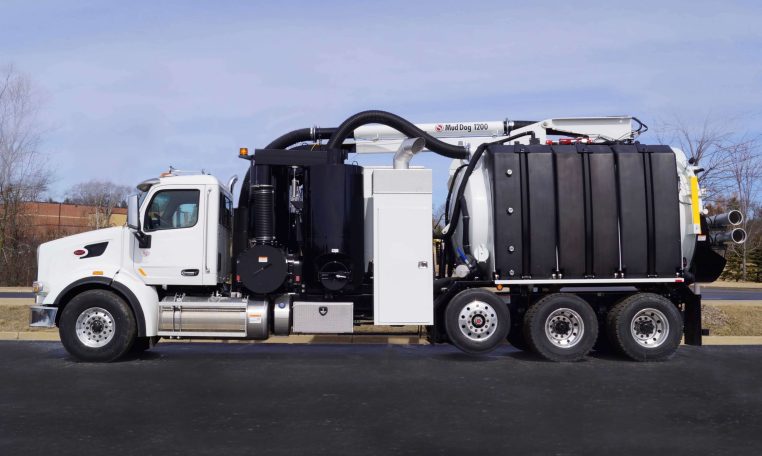

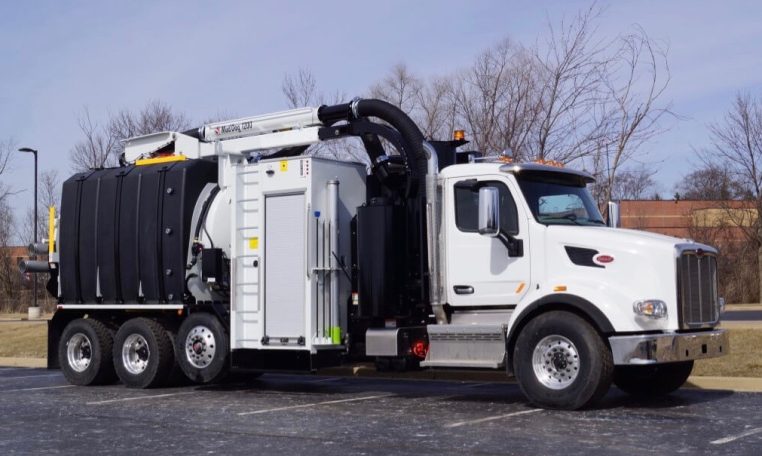

2024 Peterbilt Model 567 Tri-Drive Chassis, Cummins ISX15 (450HP) Diesel Engine, 10-Speed Manual Transmission, 20,000# Fronts, and 46,000# Rears w/ Steerable Lift Axle, Taper Leaf Front Suspension, Air Trac Rear Suspension, Diff Locks, 295″ Wheelbase, Anti-Lock Breaking System, 4.30 Rear Axle Ratio, 135 Gallon Fuel Tank, Power Windows and Locks, Engine Block and Pan Heater, Alcoa Polished Aluminum Wheels, 20,000# Fronts, and 46,000# Rear Axles w/ 13,500# Self Steering Pusher Axle.

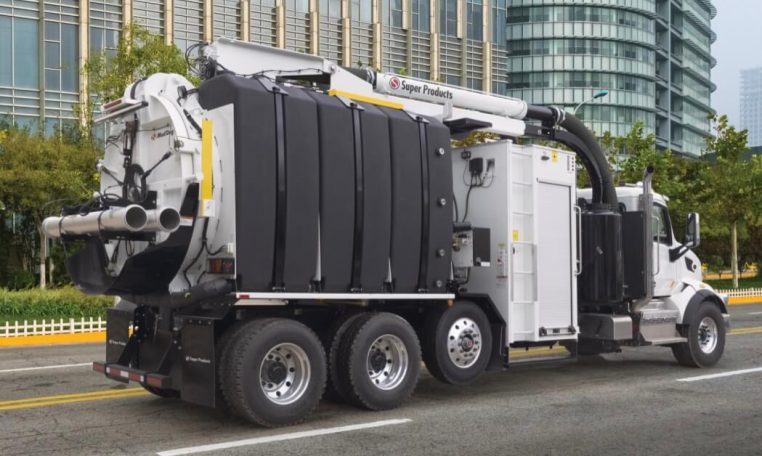

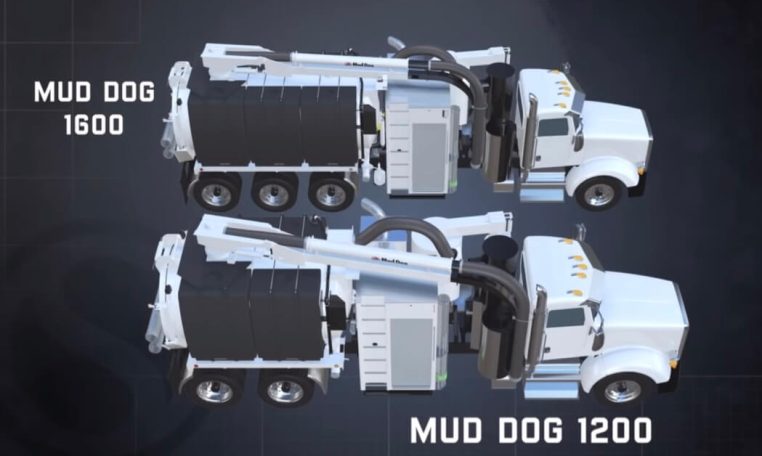

Mud Dog 1200 PD Hydro Excavator

12 Cubic Yard Debris Body
Internal Body Flush-Out System

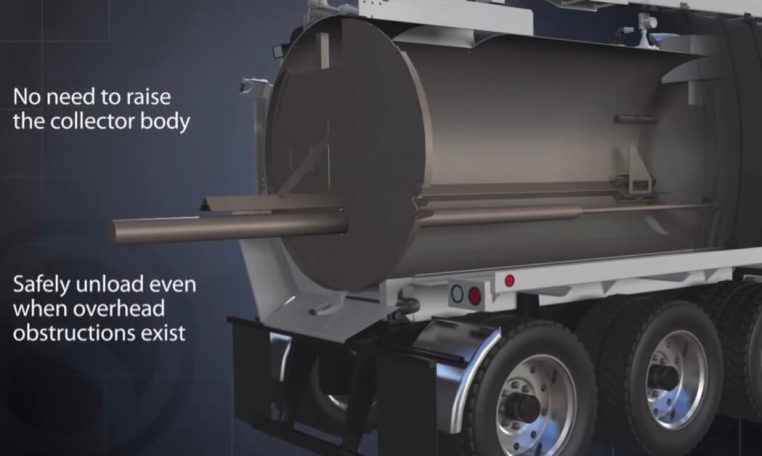

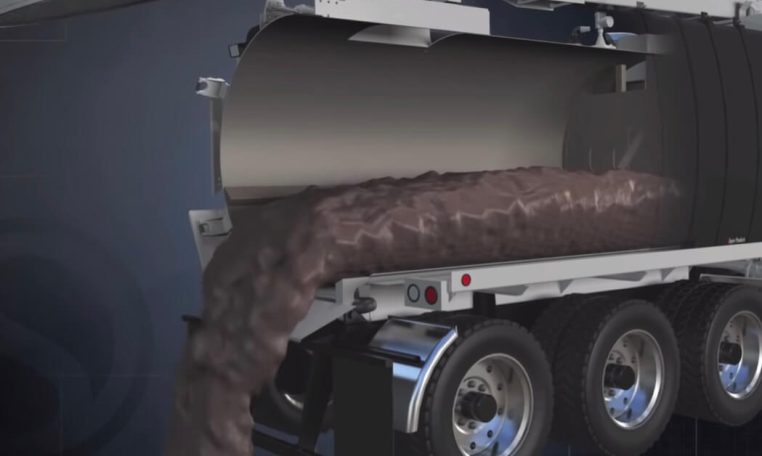

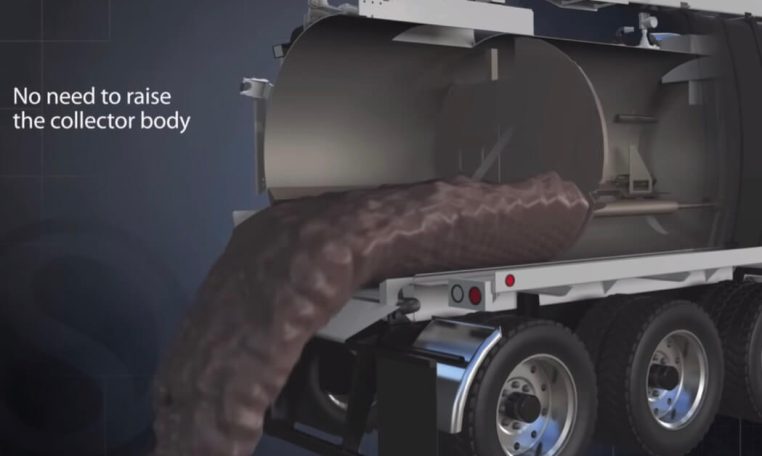

Ejector Unloading System

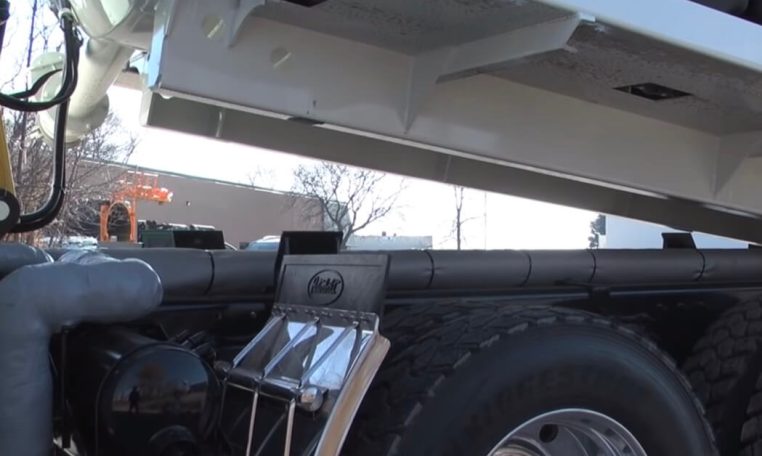

2′ Body Lift for Easy Clean-Out

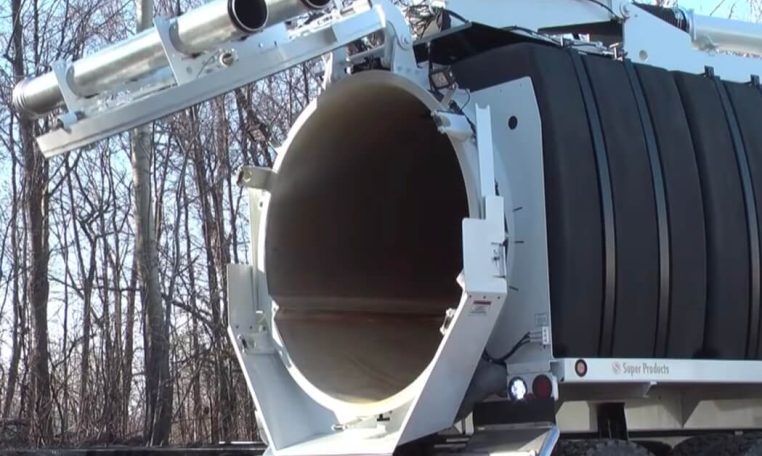

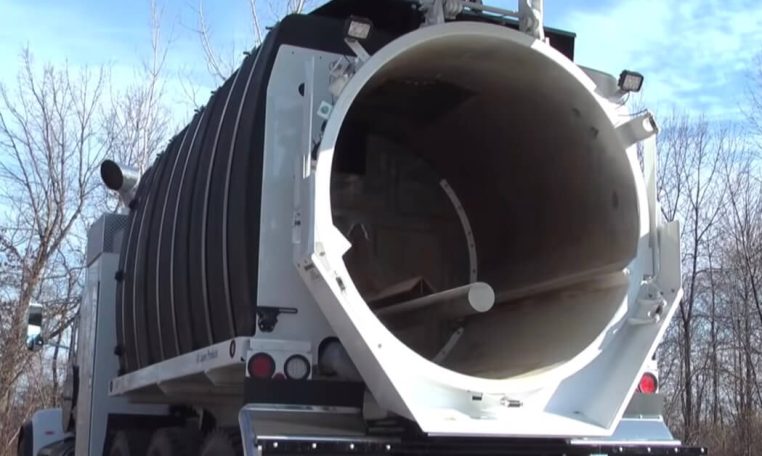

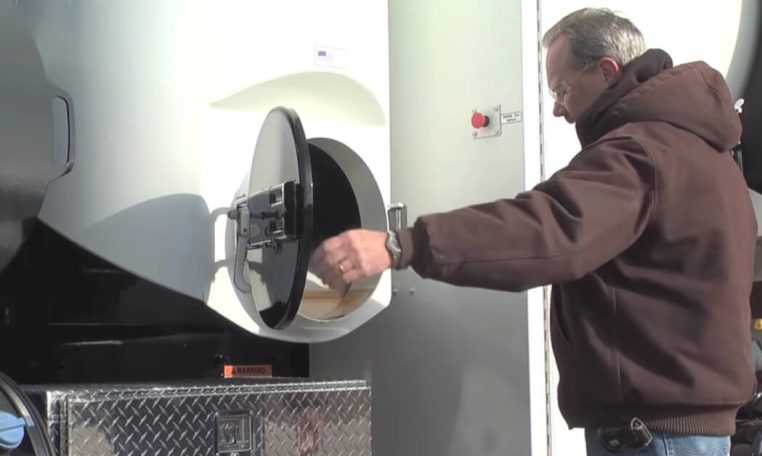

Full Diameter, Full Opening Flat Rear Tailgate
Stainless Steel Tailgate Splash Shield
1500-Gallon Water Capacity

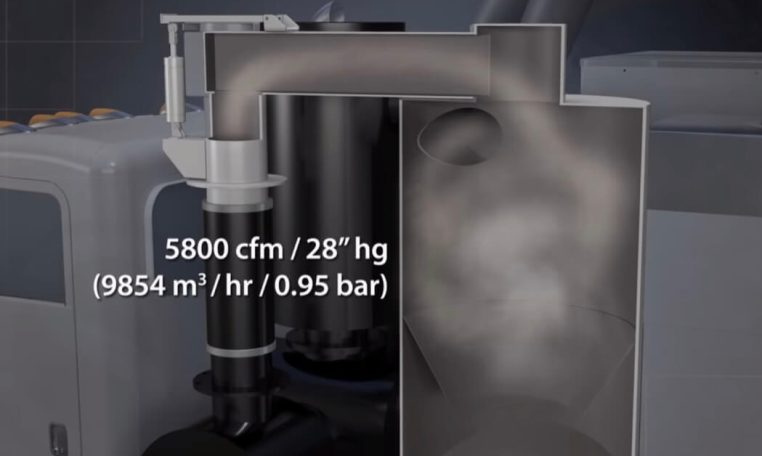

Dresser Roots (6,000 CFM @ 28″ Hg.) PD Vacuum Blower

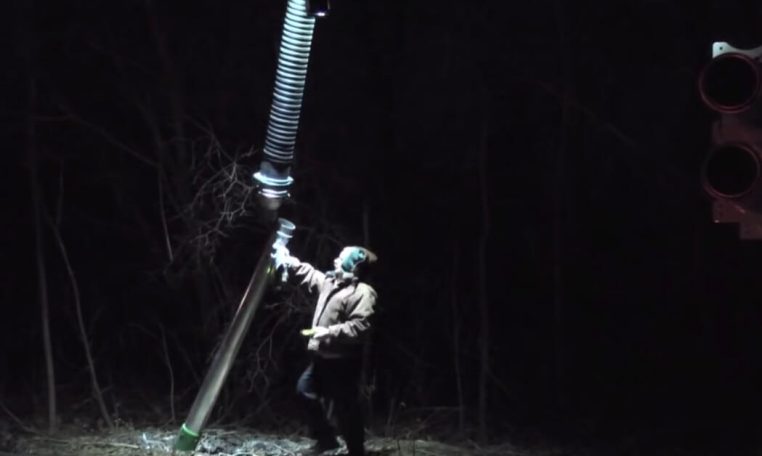

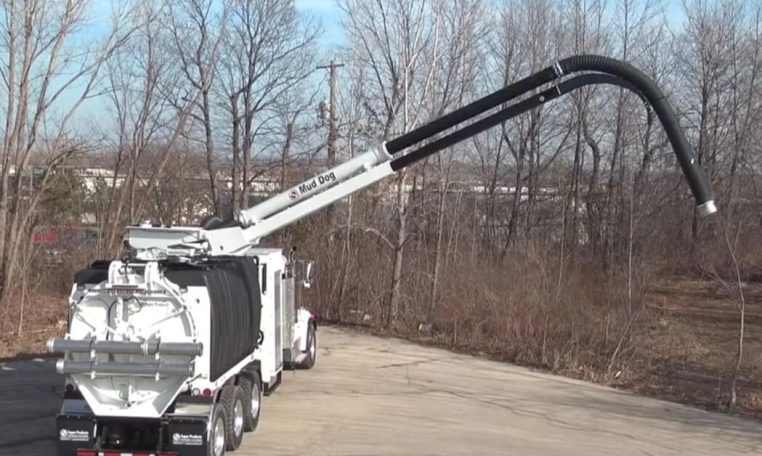

8″ Hydraulic Telescoping Vacuum Boom w/ 19″ to 27′ Reach

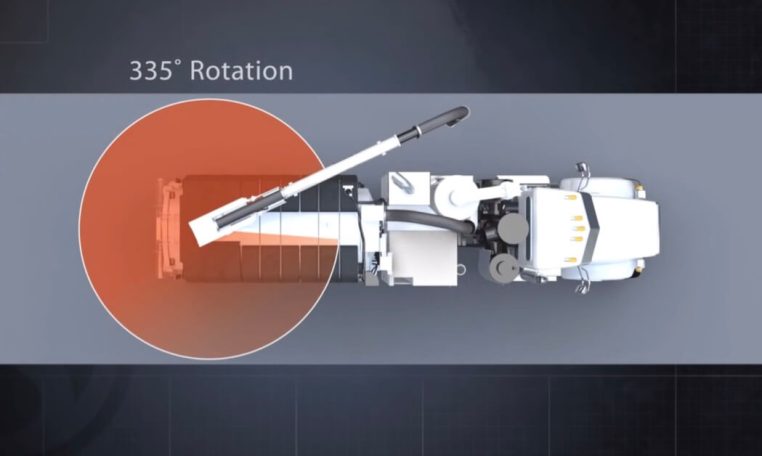

335-Degree Boom Rotation w/ Heavy Duty Rubber Elbow

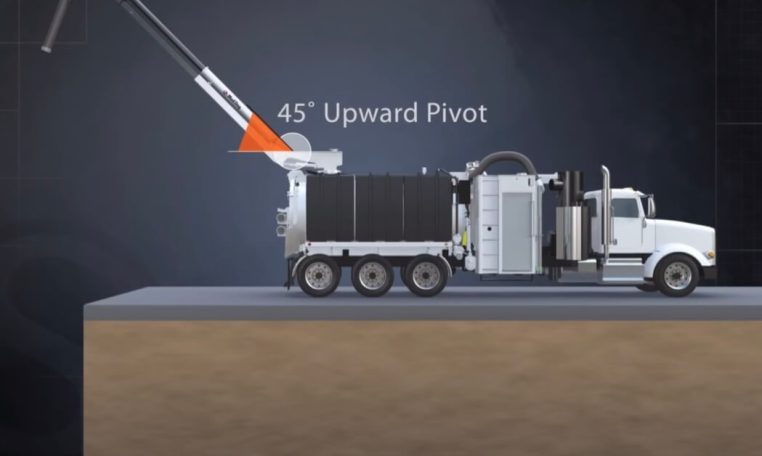

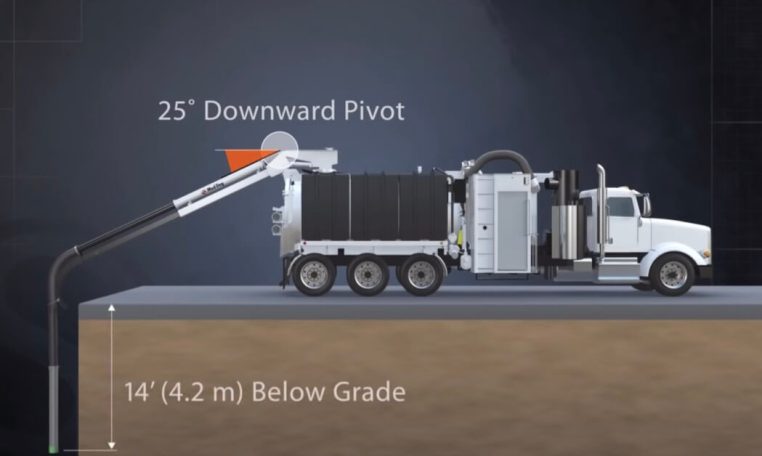

Boom Pivots 25-Degrees Down for 8′ of Extra Digging
Remote Greasing System

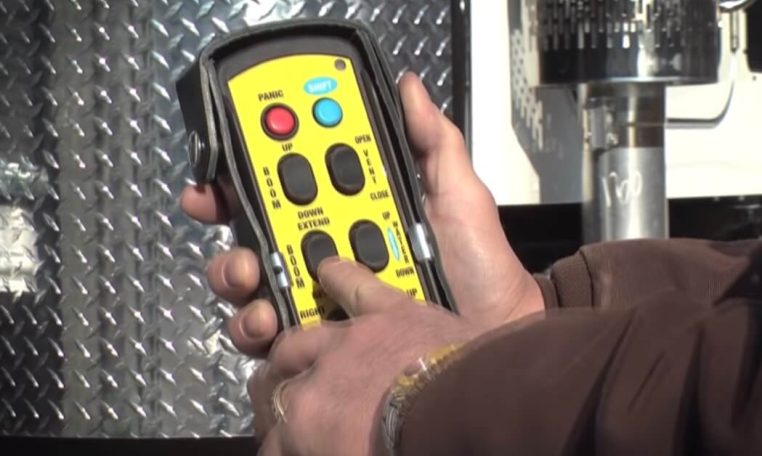

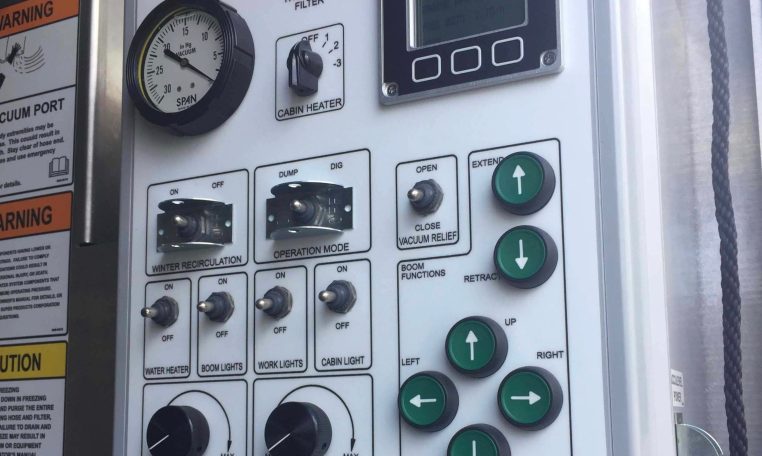

Wireless Remote Control
Remote Greasing System for Boom and Tailgate
Triplex 18 GPM @ 3,000 PSI Water Pump, Hydraulic Drive w/ Variable Flow on Remote
Curbside Water Fill
Hose Reel Capacity: 100′ x 1/2″ of Hose

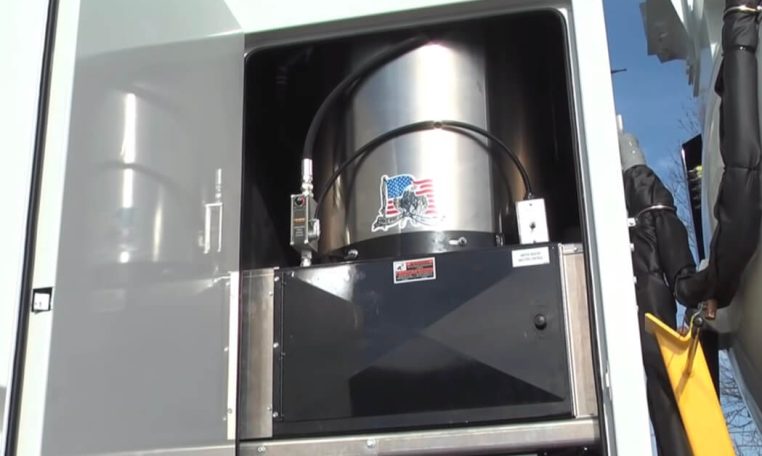

Water Heater Capacity 714,000 BTU Heater
Wireless and Wired Remote Controls

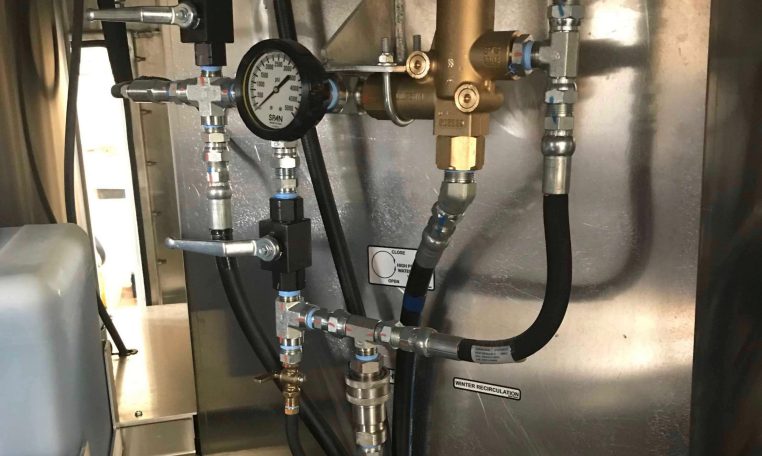

Cold Weather Winter Recirculation System
Antifreeze Injection, Air Purge System
Heated and Insulated Lines

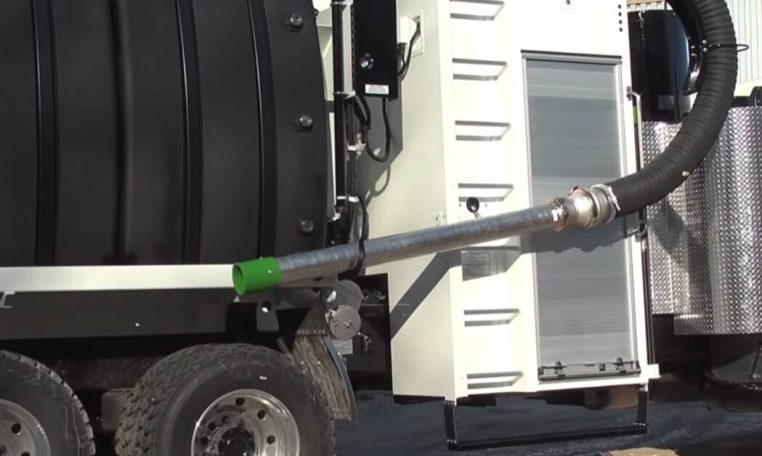

Vacuum Tube Storage

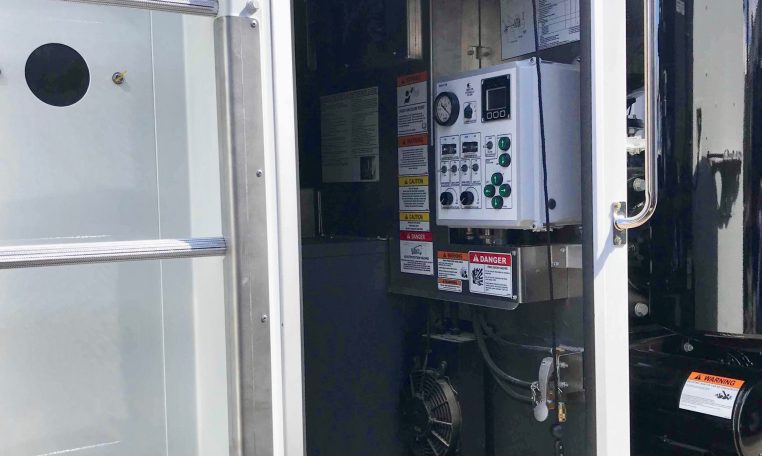

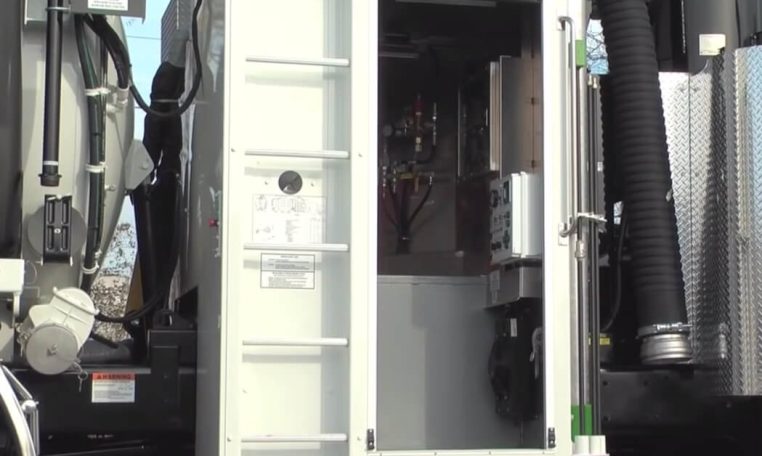

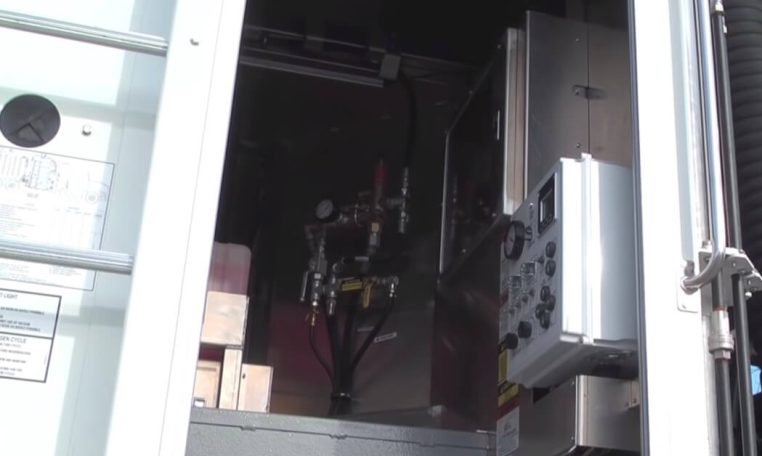

Aluminum Cabinet Heated by Dual 65,000 BTU Heaters
Aluminum Diamond Plate 18″ H x 18″ D x 36″ W Toolbox on Drivers Side

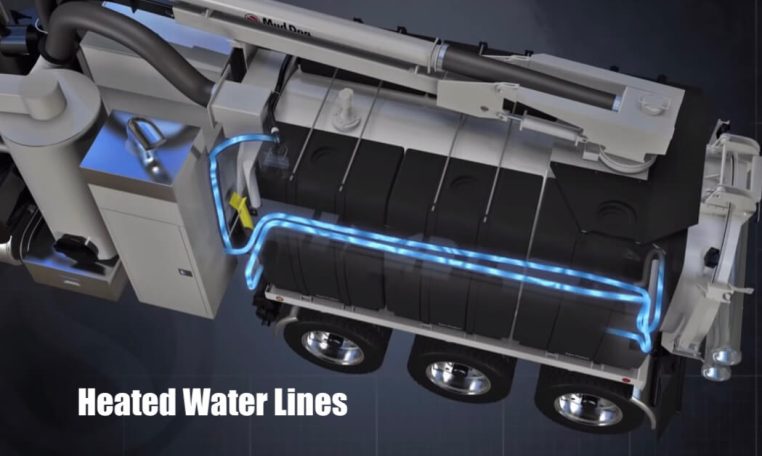

Exterior Water Lines are Heated for Extreme Winter Operation

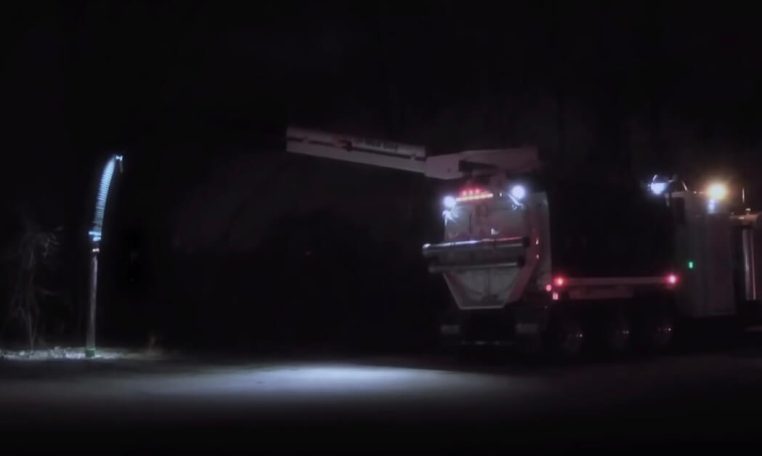

LED Lighting Package Includes Front Strobe, Rear Arrow Stick, Stop and Turn Signals

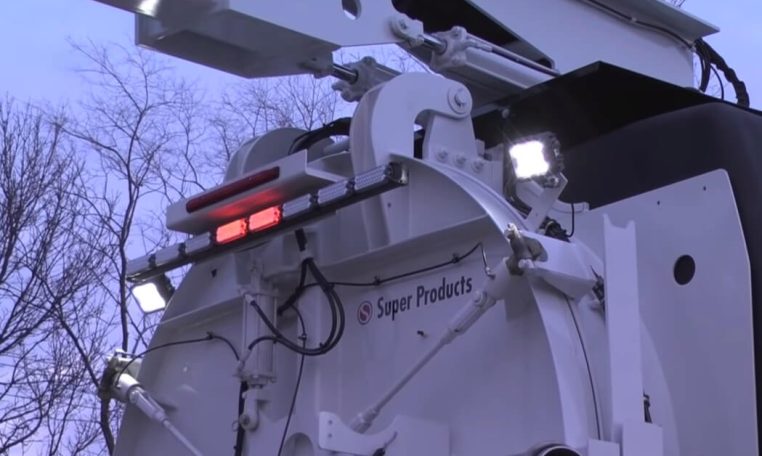

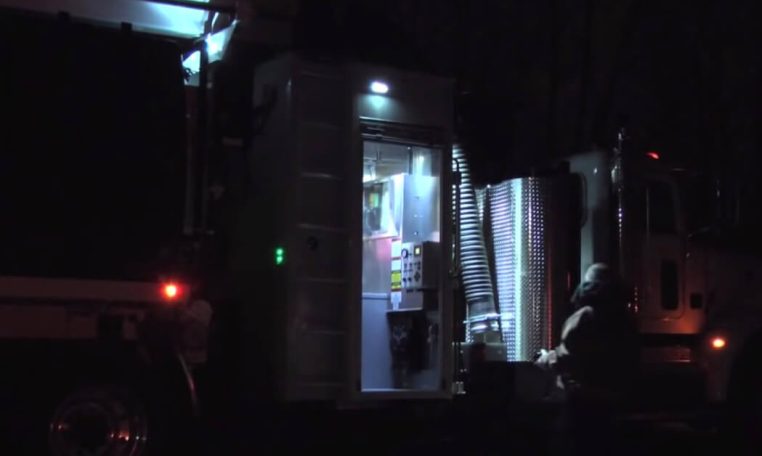

Lighting Package Includes Dual Boom Lights, Exterior Cabinet Light, and Boom Cradle Light
Safety Alarms Include Boom Out of Cradle and Body Up
List of Included Accessories Available Upon Request

Available Options:

Sludge Pump Rated at 500 GPM
Liquid Transfer Pump Rated at 300 GPM
Second Hose Reel

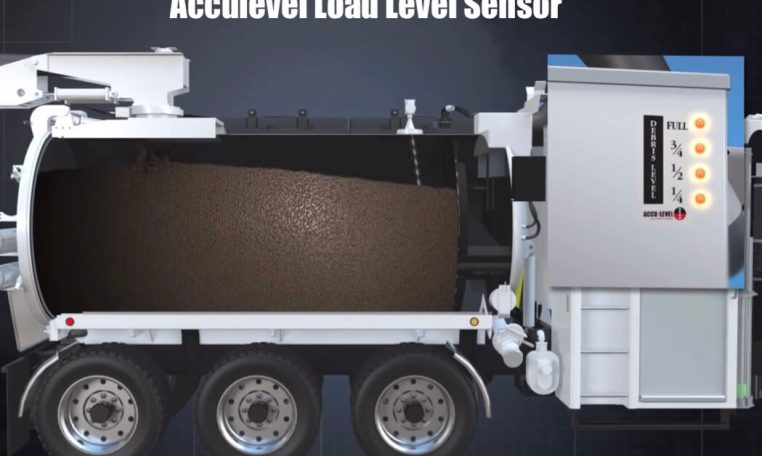

Acculevel Load Level Sensor
Dual Tire Chain Racks (Chains Not Included)
Air Excavation System
Sign Boards for Water Tanks
On-Board Scale System – Add
Ground System – Ask for Price

Located in Wisconsin, Manufacturer’s Warranty, Financing, and Leasing are Available. Call 888-432-9070 for More Information. Delivery Available.

There are no features available




Stock #:	GL2177
Location:	Wisconsin
Truck Type:	Hydrovac Trucks
Condition:	New
Year:	2024
Make:	Peterbilt
Model:	567
Engine Make:	Cummins
Engine Model:	ISX15
Horsepower:	450
Fuel Type:	Diesel
Transmission:	10-Speed
Engine Brake:	Yes
Suspension Type:	Air Trac
Wheels:	Aluminum
Wheelbase inches:	295
Rear Axles:	Tri
Front Axle Weight:	20,000
Rear Axle Weight:	46,000
Lift Axle Weight:	13,500
Lift Axle Type:	Steerable
Differential Lock:	Yes
Fuel Capacity:	135-Gallons
A/C:	Yes
Power Windows:	Yes
Power Locks:	Yes
Body Make:	Super Products
Body Model:	Mud Dog 1200
Vacuum Type:	Vacuum Blower
Pump Make:	Roots
CFM Rating:	6,000
Pump Hg. Rating:	28"
Water Pump:	Yes
Pump Make:	Triplex
GPM Rating:	18
PSI Rating:	3,000
Vacuum Boom:	Yes
Remote Control:	Wireless/Manual
Sludge Pump:	Available Option
Hot Water Boiler:	Yes
Boiler BTU Rating:	705,000
Tank Type:	Non-Code
Tank Material:	Carbon Steel
Tank Capacity:	12 Cubic Yards
Water Capacity:	1500-Gallons

DISCLAIMER: Photos, specifications, prices, and all other information are subject to change or correction without notice. While every effort is made to ensure the listed data is correct, there may be an instance where some of the pictures, options, or vehicle features may be incorrectly listed as we receive the data from multiple data. PLEASE MAKE SURE to confirm the details of the vehicle to ensure its accuracy. Dealer cannot be held liable for errors, omissions or data that is listed incorrectly.

All equipment photographs on this website depict new and used equipment and Great Lakes Equipment Sales, Inc. (“SELLER”) does not assert their accuracy or completeness. SELLER is not a manufacturer or servicer of equipment. Physical inspection of equipment is encouraged, and any purchasing decisions should be based upon such actual inspection thereof as the interested person deems appropriate, SELLER makes no representations or warranties whatsoever including, without limitations that may be incorrect such as the vehicle's title, year, model, condition, hours, milage, history, merchantability or fitness for a particular purpose.

All sales of shall be “Sold As Is Where Is Without Warranty” unless stated otherwise in writing. Taking possession of a vehicle constitutes as it is and an acknowledgment that the buyer has either fully inspected or accepted all parts of the vehicle sight unseen.

Pricing does not include state, local sales tax, and Federal Excise Tax (if applicable), licensing, and dealer document preparation charges, or any finance charges (if applicable). Final actual sales price may vary depending on options or accessories selected.
